Fyne Audio, 10주년 기념모델 F1-10 출시

hifiplaza 1시간 전 · 조회 3

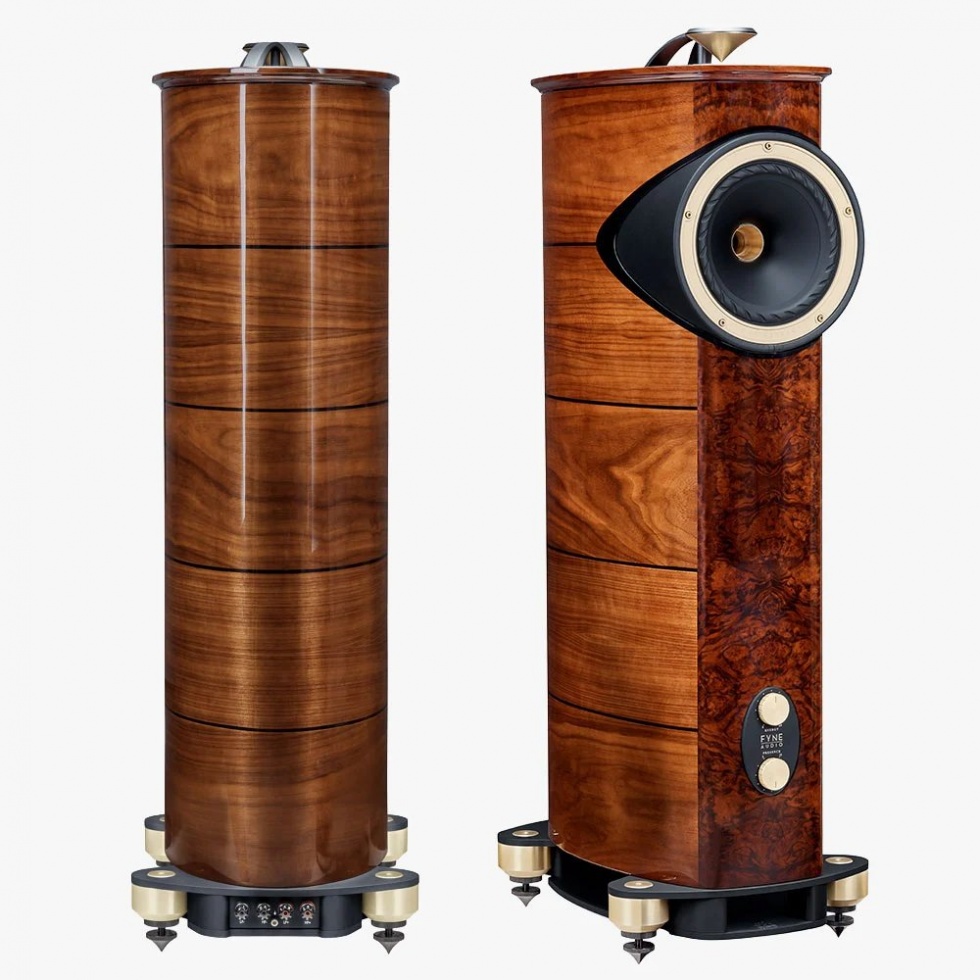

파인오디오(Fyne Audio)가 창립 10주년을 맞아 한정판 플래그십 톨보이 스피커 F1-10 Anniversary를 공식 출시했습니다.





주요 특징 및 스펙


Product Specifications

System Type

3 way, downwards firing port, with patented BassTrax Tractrix diffuser

Recommended amplifier power (Watt RMS)

20 - 280

Peak power handling (Watt)

560

Continuous power handling (Watt RMS)

140

Sensitivity (2.83 Volt @ 1m)

94dB

Nominal impedance

8 Ohm

Frequency response (-6dB typical in room)

26Hz- 60kHz

Drive unit complement

1 x 250mm IsoFlare point source driver, multi-fibre bass / midrange cone, with 75mm dome Aluminosilicate ultra-thin diaphragm compression tweeter, neodymium magnet system 25mm (1”), Thin Ply Carbon Diaphragm (TPCD) super tweeter with neodymium magnet system

Crossover frequency

750Hz, 16kHz

Crossover type

Bi-wired passive low loss, 2nd order low pass, 2nd order high pass (IsoFlare), 3rd order high pass (super tweeter), Deep Cryogenically Treated

System adjustments

High frequency energy (> 750Hz) +/- 3dB Presence (2.5kHz - 5.0kHz) +/- 3dB Super tweeter energy (16kHz – 60kHz) +/- 3dB

Dimensions - HxWxD

1247 x 405 x 585mm (49.1 x 15.9 x 23.0”)

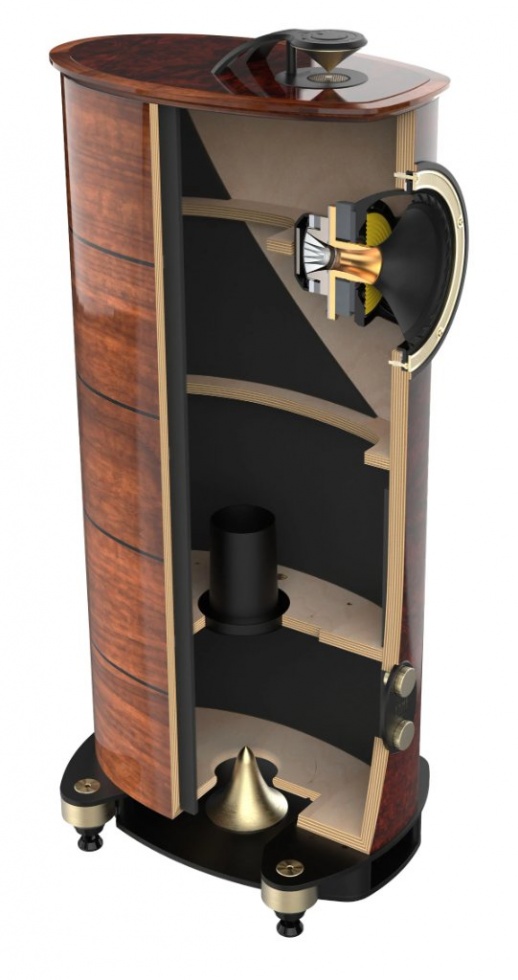

Cabinet Construction

Birch ply with solid wood trim and extensive internal bracing

Net Weight - Each

58.7kg (129.4lbs)
