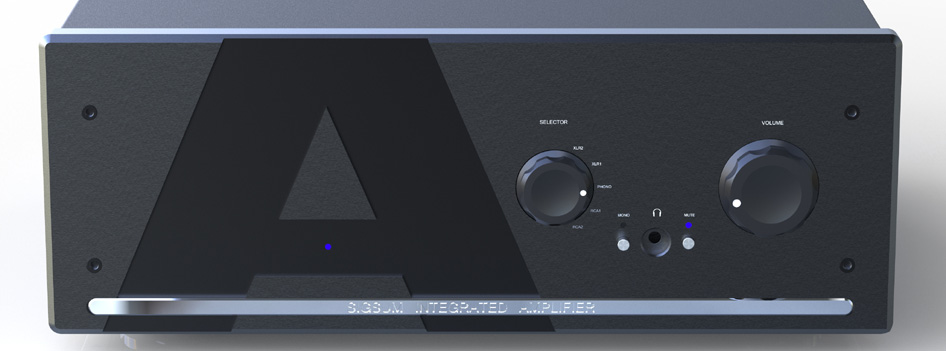

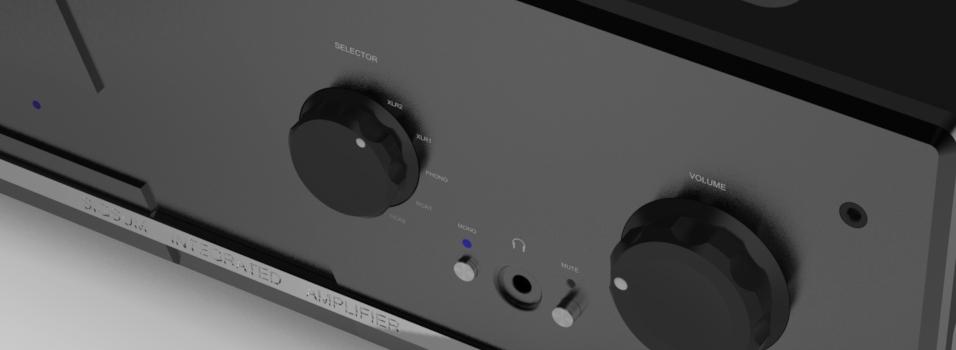

턴테이블의 명가 AVID에서 인티앰프를 내 놓았습니다. 그래서인지 턴테이블과 물리면 좋은 소리가 날것같은 느낌이 드네요.
물론 기분만은 아니고 Pellar Phonostage가 내장되어 모든 카트리지에 대응됩니다. 750 VA의 트랜스포머와 88,000uF 캐퍼시티, 알프스 볼륨이란건 그리 큰 특징은 아닙니다만.
영국에서 제작되며 가격은 7,000 파운드
| POWER | |
| Output | : 110W 8 Ohms |
| Harmonic distortion | : 0.003% (80% power 8 Ohms 1kHz) |
| Loudspeaker Impedance | : 4-16 Ohms |
| FRONT PANEL CONTROLS | |
| : ALPS RK 50 2 Gang Manual Volume Control | |
| : Selector Switch | |
| : Mute Switch | |
| : Mono Switch | |
| : Headphone Socket | |
| INPUTS | |
| PHONO | : 2x RCA |
| Gain | : 48dB – 60dB – 70dB |
| Input resistance | : 100R – 300R - 500R – 1K – 5K – 10K – 47K |
| Input capacitance | : 100pF – 200pF – 500pF |
| Distortion | : Less than 0.001% |
| RIAA Accuracy | : 5Hz - 70kHz +/-0.5dB (Neumann HF correction) |
| Noise (A weighted) | : MM –81dB MC –67dB (high setting) |
| Channel separation | : < -85dB 5Hz – 20KHz |
| Power supply | : Independant 35va transformer |
| LINE | : 4x XLR 4x RCA |
| Nominal sensitivity | : 340mV Volume Full 100W XLR |
| Input resistance | : 33 kOhms XLR 82 kOhms RCA |
| Maximum input | : 11 Vrms XLR |
| Frequency response | : 5Hz—over 80kHz ± 1dB |
| Signal/noise ratio | : 100 dB - XLR/RCA (Awtd) 50 W, ref. 1V input |
| OUTPUTS | : 4 x Gold Plated High Current |
| Line level output | : 2x RCA |
| PREAMPLIFIER OUTPUT | |
| Nominal output level | : 11 V |
| Output impedance | : 47 Ohms |
| HEADPHONE OUTPUT | |
| Maximum output level into 600 Ohms | : 10 V RMS |
| Output impedance | : 1 Ohm |
| Load range | : 20 — 600 Ohm |
| POWER CONSUMPTION | |
| Input voltage (region dependent) | : 115V or 230V AC |
| Power Consumption (Max) | : 59 Watts No Signal Idle |
| : 800 Watts Clipping 4 Ohm Load | |
| Mains input Socket | : IEC C14 Type |
| Mains input Cable | : IEC C13 Type |
| DIMENSIONS AND WEIGHTS | |
| Dimensions (including output terminals) | : 471 x 500 x 190mm (WxDxH) |
| Net weight | : 31.2kg (69lb) |
| Packaging | : 600 x 570 x 260mm (WxDxH) |
| Shipping weight | : 34.5kg (76lb) |
