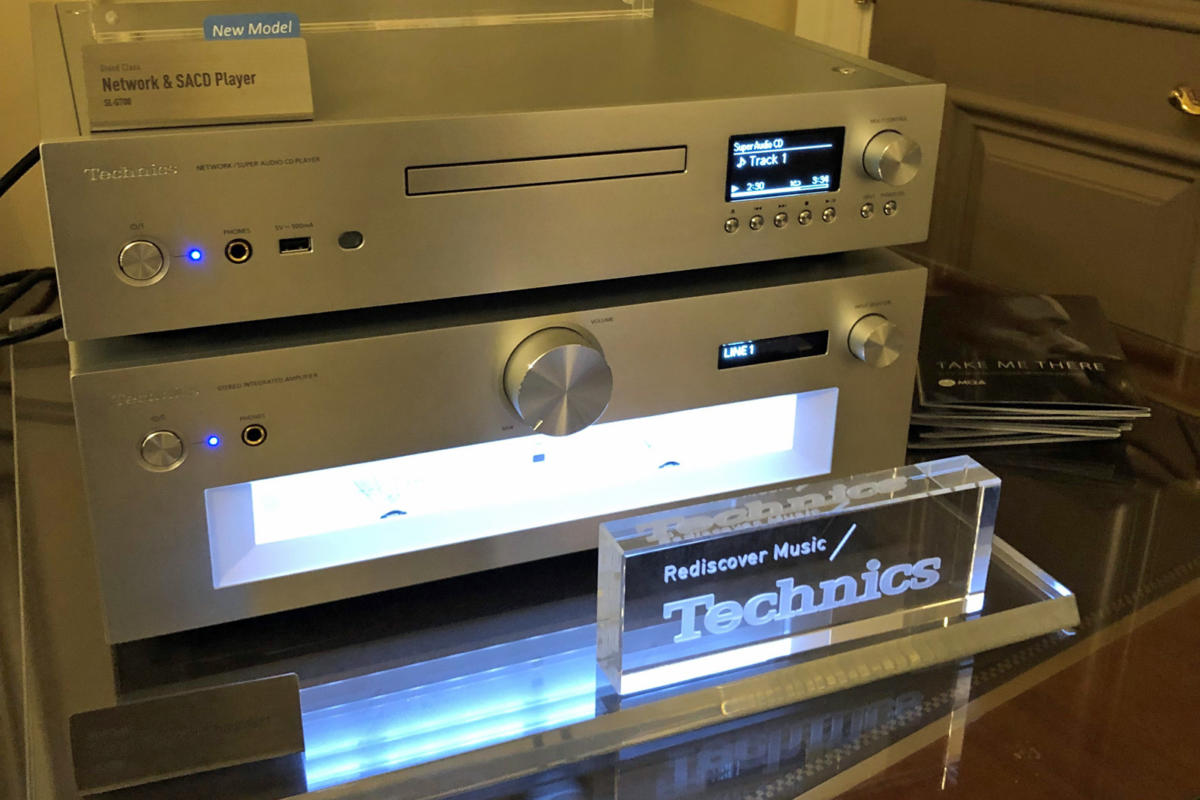

Technic 인티앰프 SU-G700 / SACD & Network player SL-G700

hifiplaza 2019.07.22 · 조회 1

Technic의 복고풍 세트. 7~80년대의 디자인 감성을 그대로 살린 인티앰프와 CDP+N Player.

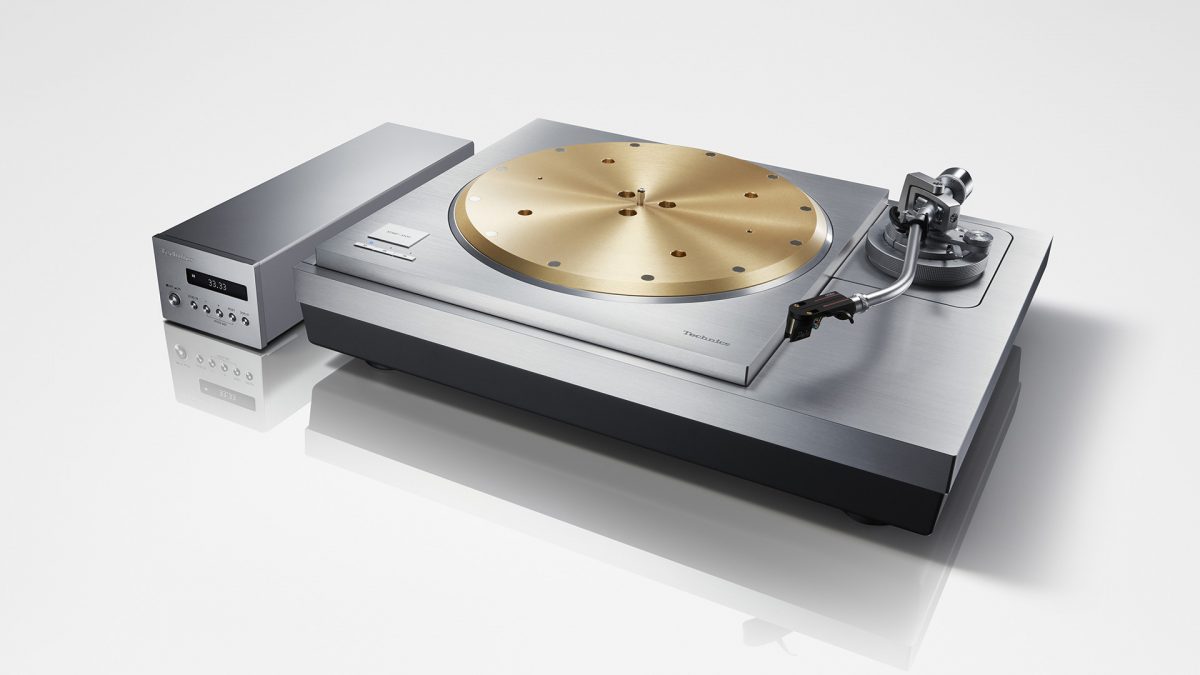

얼마전에는 SR-1000R 턴테이블을 내 놓더니(2만불) 이젠 시리즈로 이런 스타일을 내 놓는군요. 만드는거야 지네 마음이지만 얼마나 팔릴지는 미지수.

(인터넷에 다이렉트 드라이브 방식이 굉장하다고 하는걸 봤는데...웃겼음)

Stereo Integrated Amplifier SU-G700

Accurate Digital TechnologyJENO Engine (Jitter Elimination and Noise-shaping Optimisation)
LAPC (Load Adaptive Phase Calibration)
High-speed Silent Hybrid Power Supply
Battery Driven Clock Generator
High-rigidity Metal Double ChassisNoiseless Signal TechnologyDigital Noise Isolation Architecture
Optimally Activated Circuit SystemTechnics Definitive DesignHigh-rigidity Cabinet
Three-section ConfigurationFTC Output Power70 W + 70 W (1 kHz, T.H.D. 0.5 %, 8 Ω, 20 kHz LPF)
140 W + 140 W (1 kHz, T.H.D. 0.5 %, 4 Ω, 20 kHz LPF)Input Sensitivity / Input ImpedanceLINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV / 47 kΩFrequency ResponseLINE 5 Hz - 80 kHz (-3 dB, 8 Ω),
PHONO (MM) 20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω),
DIGITAL 5 Hz - 90 kHz (-3 dB, 8 Ω)Load Impedance4 - 16 ΩAnalogue Input TerminalLINE x 2 (LINE1 IN, LINE2 IN / MAIN IN) , PHONO (MM) x 1Digital Input TerminalCoaxial Digital x 2, Optical Digital x 2, USB-B (PC)Analogue Output TerminalPRE OUT x 1, LINE OUT x 1 (ANALOGUE SOURCE ONLY)Headphone OutputYesUSB-DAC (USB-B)USB Audio Class 2.0, Asynchronous ModeSupport CodecDSDYes (2.8224 MHz, 5.6448 MHz, 11.2896 MHz)PCMYes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)Power SupplyAC120 V, 60 HzPower Consumption85 WDimensions (W x H x D)430 x 148 x 428 mm
(16 15/16 x 5 13/16 x 16 27/32 in.)
WeightApprox. 12.3 kg
(Approx. 27.2 lbs)AccessoriesRemote Control, AC Cord, Owner's Manual

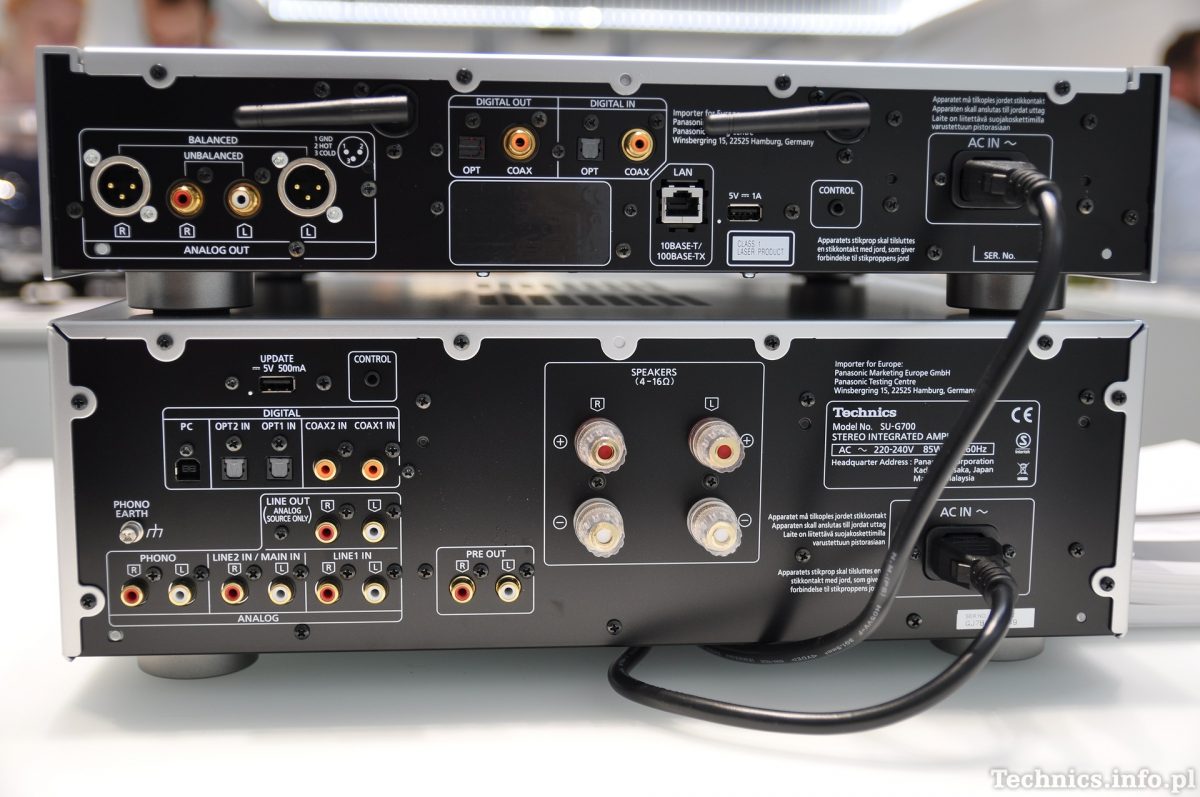

Analogue Output(BALANCED x1, UNBALANCED x1) / Digital Coaxial Output x1 / Digital Optical Output x1 / Headphone Out x1
Digital Coaxial Input x1 / Digital Optical Input x1 / USB-A x2
Ethernet Interface : LAN (100 Base-TX / 10 Base-T)
System Port : System Control Input/Output (Φ3.5 mm Jack)
