매킨토시가 쉴새없이 신제품을 내놓는군요. 전략자체가 집중보다는 보다 많이 시장에 퍼뜨리는 쪽으로 방향을 잡은듯합니다.
이번 인티앰프는 모양부터 MC275 계열이듯 All-Analogue Design을 강조하고 있습니다. MC252의 상급 모델답게 힘을 두배로 늘려 200W의 출력을 냅니다.
초단관으로 12AX7A와 12AT7를 사용하는 것, 2개의 밸런스 /3개의 언밸런스 입력, MM/MC지원 등의 지루한 얘기는 그리 별거 아니고 McIntosh Monogrammed Heatsinks등 매킨토시의 다양한 기술이 들어가있단 홍보를 하고 있습니다.
매킨토시의 트레이드 마크인 블루VU와 MC275 디자인을 합쳐 뽑아내는 이 시리즈들은 어떻게든 팔아보겠다는 회사와 직원들의 의지로 보입니다. 이것마저 안 먹히면 더 이상 쓸 패가 없으니까요.
가격은 $6,500
Specifications
ELECTRONIC SPECIFICATIONS
- Power Output per Channel200 Watts into 8 Ohms
320 Watts into 4 Ohms - Number of Channels2
- Speaker Impedance4 or 8 Ohms
- Rated Power Band20Hz to 20kHz
- Total Harmonic Distortion0.03%
- Dynamic Headroom1.5dB
- Frequency Response +0,-0.5dB20Hz to 20kHz
- Frequency Response, +0, -3dB10Hz to 100kHz
- Sensitivity Phono (Moving Coil)N/A
- Sensitivity Phono (Moving Magnet)2.5mV
- Sensitivity High Level (Balanced / Unbalanced)0.5V/0.25V
- Sensitivity (Power Amp input)N/A
- Signal To Noise Ratio (Moving Coil)N/A
- Signal To Noise Ratio (Moving Magnet)82dB
- Signal To Noise Ratio (High Level)93dB
- Signal To Noise Ratio (Power Amp input)N/A
- Input Impedance (Balanced / Unbalanced)20K/20K
- Damping Factor8 Ohms: >200
4 Ohms: >100 - Maximum Output (Balanced / Unbalanced)8V Unbalanced

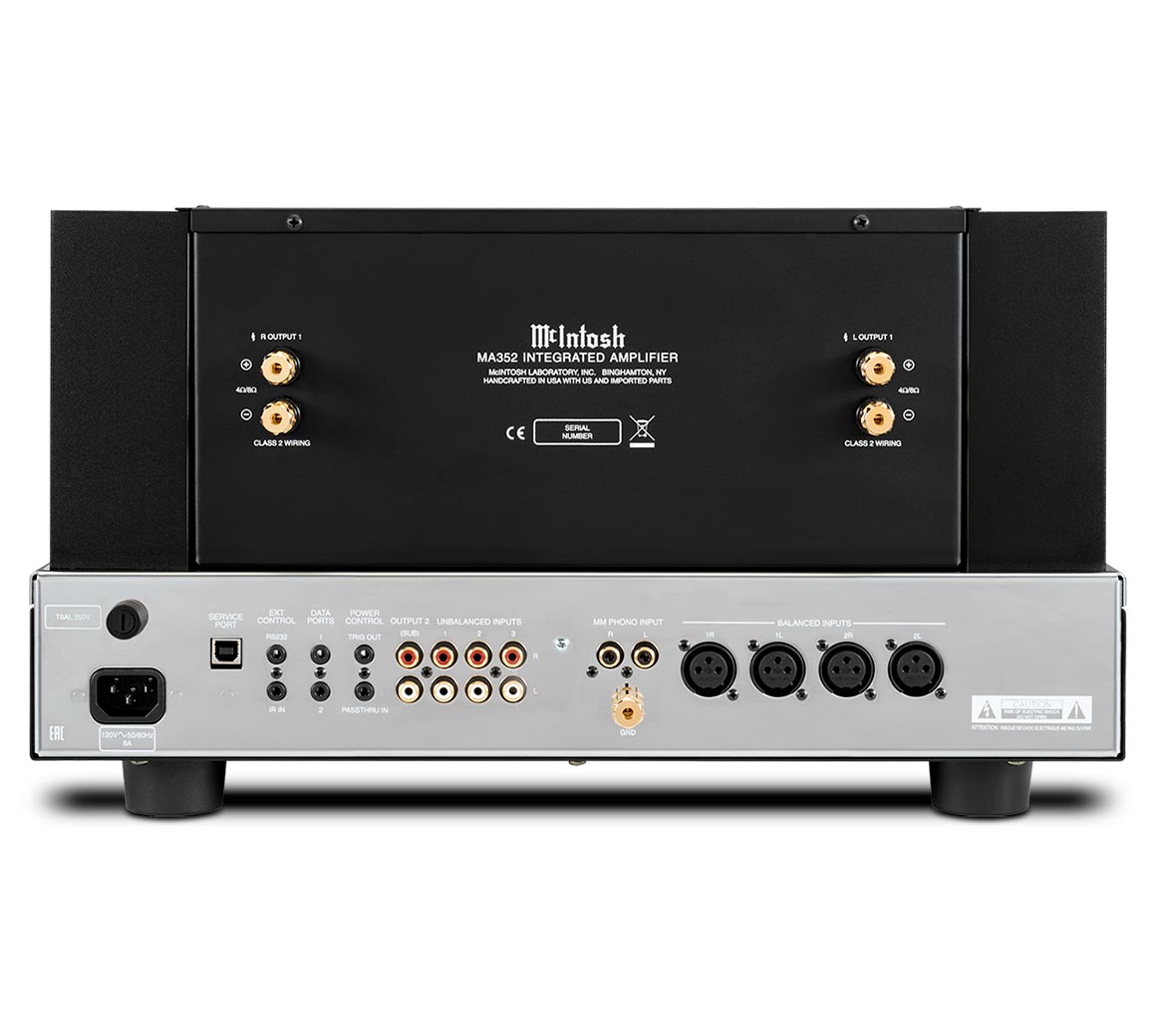

CONNECTIVITY
- Balanced Input2
- Unbalanced Input3
- Phono Input Moving Coil0
- Phono Input Moving Magnet1 (adjustable loading)
- Upgradeable Digital Audio ModuleNo
- Digital Coaxial Input0
- Digital Optical Input0
- Digital MCT (DIN) Input0
- Digital USB Input0
- Balanced Variable Output0
- Unbalanced Fixed Output0
- Unbalanced Variable Output1
- Headphone Output1/4" High Drive with Headphone Crossfeed Director (HXD®)
- Subwoofer Output2
- AM/FM Tuner optionNo
- Home Theater PassThruYes
- Unbalanced Analog Connector TypeStandard
- Speaker Binding Post TypeStandard
- Service Port1
DIGITAL AUDIO SPECIFICATIONS
- Digital-to-Analog Converter (DAC) TypeN/A
- Digital Coaxial Input Sample RateN/A
- Digital Optical Input Sample RateN/A
- Digital MCT (DIN) Input Sample RateN/A
- Digital USB Input Sample RateN/A
CONTROL
- Tone Controls5-Band
- Tone Bypass and Input AssignYes
- RS232 Control InputYes
- Power Control Output1
- Rear Panel Data Port2
- Rear Panel IR Sensor InputYes
- Input Level MatchYes
GENERAL SPECIFICATIONS
- Vacuum Tube or Solid StatePreamplifier: Vacuum Tube
Power Amplifier: Solid State - Output TypeDirect Coupled
- Output MetersYes
- Dual Layer ChassisYes
- Chassis FinishPolished stainless steel
- McIntosh Monogrammed Heatsinks™Yes
- Power Requirement120V 50/60Hz, 6.0A
- Standby Power Requirement<0.5 Watts
WEIGHTS & DIMENSIONS
- Dimensions (W x H x D)17-1/2" (44.5cm) x 9-7/8" (25.1cm) x 20-1/2" (52.1cm)
- Weight66 lbs (29.9 kg)
- Shipping Weight75 lbs (34.0 kg)
