Metronome의 AQWO 시리즈

오랫만에 Metronome에서 새로운 소스기기를 내 놓았습니다. AQWO 시리즈는 일체형인 AQWO, 트랜스포트 t|AQWO, DAC인 c|AQWO가 있습니다.

물리적 매체의 판매량이 급갑하고 있는 요새 CD나 SACD전용 기기를 선보이는건 상당히 용기가 필요한 일입니다. 그래서 얼마나 팔리든 응원하고 싶어지네요.

c|AQWO 는 각 채널에 AKM4497칩을 사용하여 32비트/768kHz, DSD를 지원합니다.

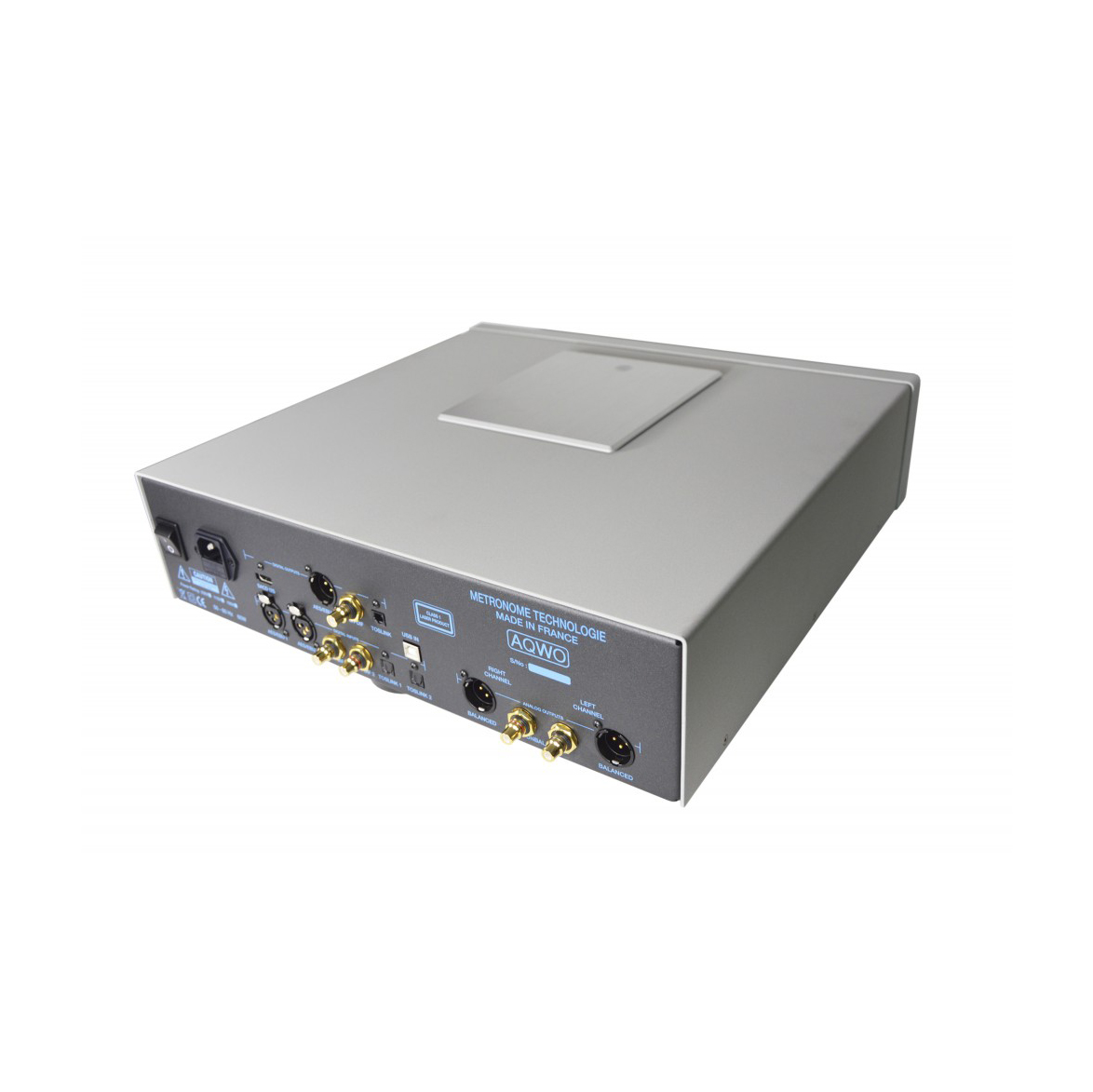

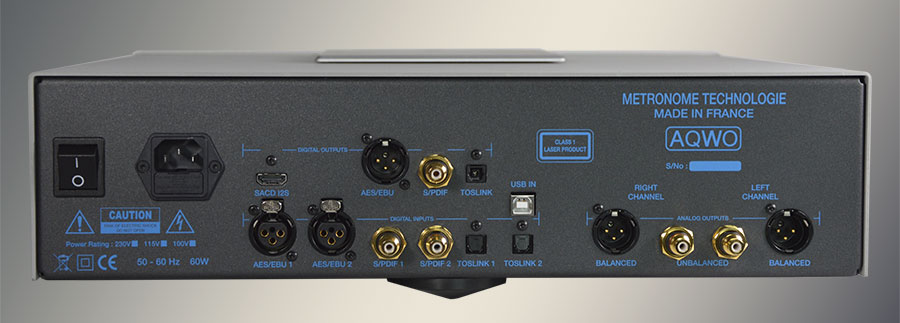

SPECIFICATIONS AQWO

Pickup Mechanism :
SACD D&M with customizations and Delrin® puck

Resolution :
32 bits / 384 kHz dual mono, 2 internal converter chips

Digital Inputs :
USB asynchronous type B (32/384)
S/P DIF 75 Ohms RCA x2
AES-EBU 110 Ohms XLR x2
Optical Toslink x2

Digital Outputs :
I²S HDMI proprietary
S/P DIF 75 Ohms RCA
AES-EBU 110 Ohms XLR
Optique Toslink

Analog Outputs:
Unbalanced 1.4/2.5/3 V RMS @0dB – 47 kOhms, connecteurs RCA
Balanced 1.4/2.5/3 V RMS @0dB – 600 Ohms, connecteurs XLR
Optional tube outputs with additional boards

Power supply :
3/4 toroidal transformers with Schaffner filters, 10 independent regulation lines
Voltage : 100 – 120/240 V – 50/60 Hz

Accessoiries :
Métronome standard remote

Other characteristics :
Power Consumption : 40 VA
Dimensions (LxHxP):
425 x 130 x 415 mm
Weight : 15 Kg

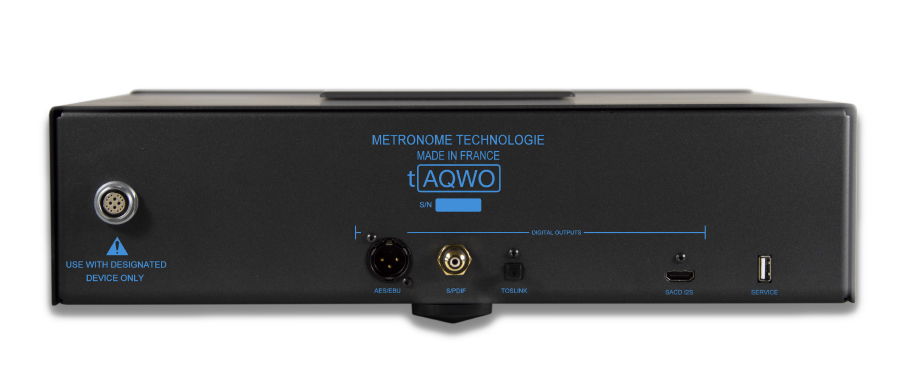

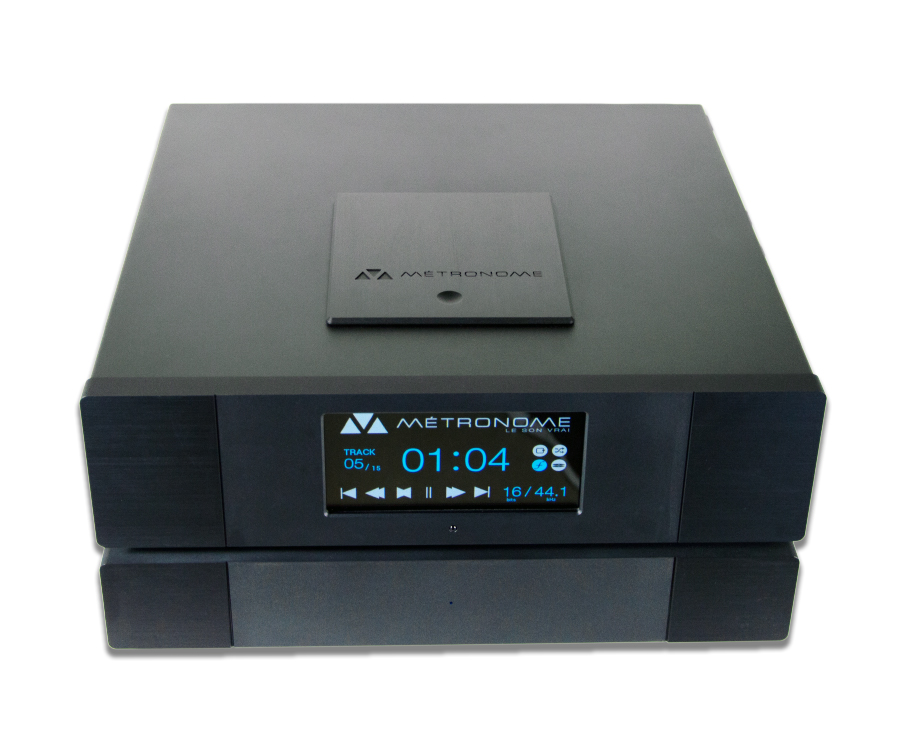

SPECIFICATIONS T|AQWO

Pickup mechanism :
D&M SACD customized by Métronome with Delrin® CD puck

Digital outputs :
(16bit/44.1kHz)
S/PDIF 75 Ohms RCA connector
AES/EBU 110 Ohms XLR connector
ATT/ST optical Toslink
(32bits/768kHz)(1bit/22.5MHz)
HDMI IIS

Power supply :

3 toroidal transformers with Schaffner filters, 7 independent regulation lines
Voltage : 100 – 120/240 V – 50/60 Hz

Accessories :
Métronome remote
Adaptable Delrin feet

Other characteristics :
Consumption : 50 VA

Dimensions (LxHxP):
430 x 120 x 420 mm Weight : 13.2 Kg
Elektra: 430 x 80 x 420 mm Weight: 14 kg

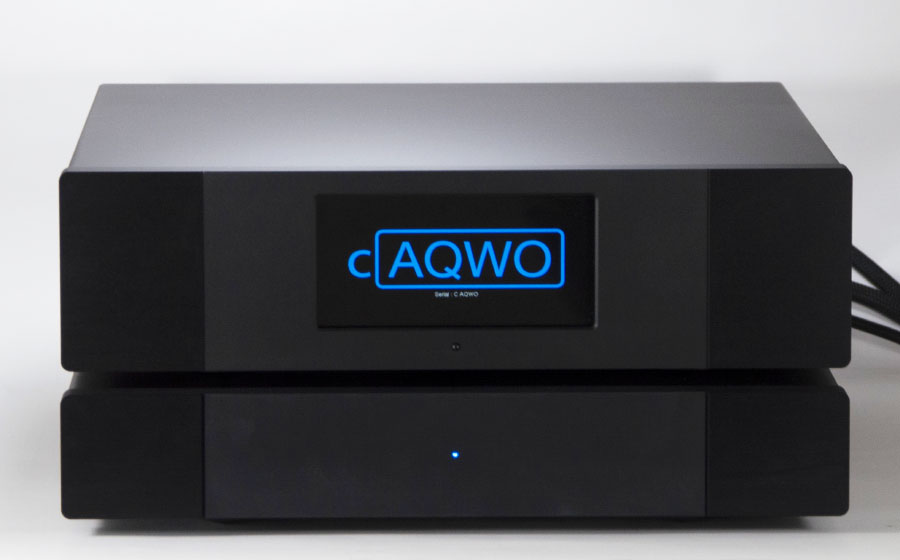

SPECIFICATIONS C|AQWO

Resolution :
32 bits / 768 kHz dual-mono, 2 internal converter chips

Internal characteristics :
Dynamic range capacity : 175 dB / Distorsion + noise : -140 dB
Internal processing 32 bit / Frequency bandwidth 32 - 211 kHz

Analogic output integrates 2 output modes :
Solid state / tube (whan option implemented)
2 tubes JAN6922 Class A polarization
Bandwidth : 10 Hz - 50 kHz +/- 0.1 dB
Dynamic range capacity : 140 dB

Digital inputs :
All inputs accept signals from 44.1 to 192 kHz :
S/PDIF 75 Ohms RCA connector
AES/EBU 110 Ohms XLR connector
Optical Toslink connector
HDMI and USB type B : PCM from 44.1 to 384 kHz, DSD up to 22.5MHz

Analogic outputs :
Unbalanced adjustable 1.4 - 2.5 - 3 V RMS @0dB -47 KOhms – RCA connectors
Balanced adjustable 1.4 - 2.5 - 3 V RMS @0 dB - 600 Ohms – XLR connectors

Power supply :
4 toroidal transformers with 11 independent regulation lines

Voltage :
100 VAC - 50/60 Hz Japan
120/240 VAC - 50/60 Hz Other countries

Other characteristics :
Consumption : 90 VA max
Dimensions (LxHxP) : 430 x 120 x 420 mm
Weight : 12 kg
Elektra (LxHxP) : 450 x 80 x 420 mm
Weight : 12.7 kg
