George Kazantzis가 설립한 Aku-audio는 아테네에 있으며, Kostas Kazantzis와 같이 자신만의 스피커를 만들고 있죠. 그래도 최상위 모델은 가격때문인지 그나마 전형적인 스피커에서 벗어나지 않았으나 그 아래 제품군은 팔리거나 말거나 스타일로 자유롭게 만들고 있습니다.
뭐 좋습니다. 이런 사람도 있고 저런 사람도 있어야 발전이 있는 것이니까요. 월드워Z에서 이스라엘은 회의체에서 무조건 반대로 생각하게하는 1인을 두어 위험에 대비하지 않았습니까? 오디오계라고 그러지 말란법없으니까요. ^^
제품명은 그리스 신화에서 따왔다 하는데 그러거나 말거나... 제품 설명의 장황한 내용은 역시나 뻔한것으로 별거 없습니다.

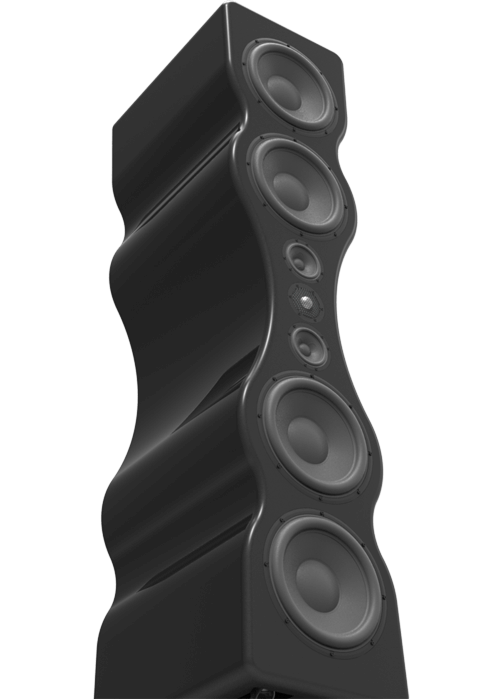

1. Enarghia ( € 60,000 - 운송 관세 미포함)
Technical Specifications
System– Active 3-way, 5 chamber, floor stander with multi-layered proprietary body construction. Amplitude, time & phase aligned. Highly accurate linear phase crossovers.
– Asymmetric internal surfaces with embedded stiffeners in all directions.
– Minimal Vibration mdf composite design.
Driver Composition– Bass section: two 12″ aluminum, high-excursion woofers paired with four 12″ aluminum passive radiators in two chambers.
– Midrange section: two ultra-accurate 4,7″ paper cone, neo magnet midrange units with under-hung motors and very wide linear frequency response.
– Treble section: one 1,34″ beryllium dome, neo motor high-excursion tweeter with high power handling, low distortion & cross capability.
System preamp/Crossover
DSP/Room EQ– One DEQX digital system processor per pair with four programs. (Maximally Flat, Bass Contour, Party Mode, free slot for personalization)
– Five Digital inputs: 1.toslink(optical) 2.s/pdif(BNC) 3.s/pdif(RCA) 4.AES/EBU(XLR) 5.USBaudio(acts as a computer soundcard)
– Two Analog inputs: 1. Unbalanced stereo (RCA) 2. Balanced stereo (XLR)
– Six balanced analog outputs (XLR)
– Three stereo digital outputs (BNC) for optionally using outboard D/A converters
– Trigger out
– Linear Phase crossovers up to 300dB/Oct.
– THD: 0.0008%
– RoomEQ with 10 real-time fully parametric eq points (measurement mic included)
– Ethernet connectivity, supporting DLNA & Roon
– Touch screen control & remote
Frequency
Response– 15Hz – 40000Hz (in room @ +-3dB)
– 25Hz – 22000Hz @ +-0.5dB accuracy
SPL– 120dB
Stands– Four 360deg. Industrial Alu-rubber wheels
Amplification– One custom Four Hypex Ncore Channel amplifier per side
– Fully Balanced operation
– No switches in signal path
– Trigger I/O
– Bass: 1200Watt
– Midrange: 500Watt
– Treble: 250Watt
– Frequency Response: 10Hz-50KHz
– SNR: 118dB
– Distortion (THD+N): 0.006% @ half power
– Global Mains Voltage compatibility (100-240VAC)
– Efficiency: 92%
– Max Power Consumption per side: 2100W
– Black Color (Silver Optional)
– Neutrik XLR balanced inputs
– Neutrik Speakon 8pole output
Dimensions
– Loudspeakers
H:1830mm W:400mm D:570mm
H:72in W:15.75in D:22.44in
– Amplifiers
H:90mm W:450mm D:350mm
H:3.54in W:17.71in D:13.78in
– Processor
H:106mm W:430mm D:300mm
H:4.17in W:16.93in D:11.81in
Weight– Loudspeaker: 130kg / 286,6lb each
– Amplifier: 9kg / 19,8lb each
– Processor: 5kg / 11lb
2. Talos( € 20,000 - 운송 관세 미포함)
Technical Specifications
- System– Active 3-way, 4 chamber, floor stander with multi-layered proprietary body construction. Amplitude, time & phase aligned. Highly accurate linear phase crossovers (premium version).
– Nonplanar internal surfaces.
– Minimal Vibration mdf composite design. - Driver Composition– Bass section: one 12″ aluminum, high-excursion subwoofer on rubber/aluminum decoupling rings.
– Midrange section: two 7″ air dried paper/Nylon Fibre Cone midrange units with symmetrical drive motor and Die-cast alu. chassis on rubber/aluminum decoupling rings.
– Treble section: one 1,34″ aluminum-magnesium dome, neo motor high-excursion tweeter with high power handling, low distortion & cross capability. Mounted via aluminum decoupling rings. - Frequency
Response– 33Hz – 25000Hz @ +-2.5dB
– 25Hz – 35000Hz (-10dB) - SPL– 117dB
- Stands– Solid steel stand mounted with decouplers to the main speaker body and aluminum-rubber discs for floor contact
- Weight– Loudspeaker: 94kg / 206,8lb each
Standard Electronics Package
– Amplifier: 10.5kg / 23,10lb
Premium Electronics Package
– Amplifier: 9kg / 19,8lb
– Processor: 5kg / 11lb - Dimensions
– Loudspeaker
H:1400mm W:600mm D:610mm
H:55.11in W:23.62in D:24.01in
Standard Electronics Package
H:330mm W:490mm D:115mm
H:12.99in W:19.29in D:4.53in
Premium Electronics Package
– Amplifier
H:90mm W:450mm D:350mm
H:3.54in W:17.71in D:13.78in
– Processor
H:106mm W:430mm D:300mm
H:4.17in W:16.93in D:11.81in
- Amplification & DSP / Preamp OptionsSTANDARD AMPLIFICATION / DSP PACKAGE
– Two custom AKu-Hypex Ncore 3channel amplifiers with DSP plus Digital and Analog I/O
– Three DSP presets (Maximally Flat, Bass Contour, Party Mode)
– Bass: 2x500Watt
– Midrange: 2x500Watt
– Treble: 2x100Watt
– Frequency Response: 10Hz-50KHz
– SNR: 111dB
– Distortion (THD+N): -102.5dB
– Global Mains Voltage compatibility (100-240VAC)
– Efficiency: 92%
– Max Power Consumption: 2x1200W
– Power Connector: 3-pin IEC 250Vac, 10A male
– Neutrik XLR balanced inputs for Analog & AES
– Hypex Gold RCA unbalanced input for Analog & S/PDIF
– Optical – Toslink input (up to 96KHz)
– Neutrik Speakon 8pole output
*use of a digital or analog preamp before the amp is advisable.PREMIUM AMPLIFICATION / DSP-PREAMP PACKAGE
– One custom Six Hypex Ncore Channel amplifier per pair
– Bass: 2x500Watt
– Midrange: 2x500Watt
– Treble: 2x250Watt
– Frequency Response: 10Hz-50KHz
– SNR: 118dB
– Distortion (THD+N): 0.006% @ half power
– Global Mains Voltage compatibility (100-240VAC)
– Efficiency: 92%
– Max Power Consumption: 2700W
– Black Color (Silver Optional)
– Neutrik XLR balanced inputs
– Neutrik Speakon 8pole output
SYSTEM PREAMP/ CROSSOVER DSP / ROOM EQ
– one DEQX digital system processor per pair with four programs. (Maximally Flat, Bass Contour, Party Mode, free slot for personalization)
– Five Digital inputs: 1.toslink(optical) 2.s/pdif(BNC) 3.s/pdif(RCA) 4.AES/EBU(XLR) 5.USBaudio(acts as a computer soundcard)
– Two Analog inputs: 1. Unbalanced stereo(RCA) 2. Balanced stereo (XLR)
– Six balanced analog outputs (XLR)
– Three stereo digital outputs (BNC) for optionally using outboard D/A converters
– Trigger outs
– Linear Phase crossovers up to 300dB/Oct.
– THD: 0.0008%
– RoomEQ with 10 real-time fully parametric eq points (measurement mic included)
– Ethernet connectivity, supporting DLNA & Roon
– Touch screen control & remote

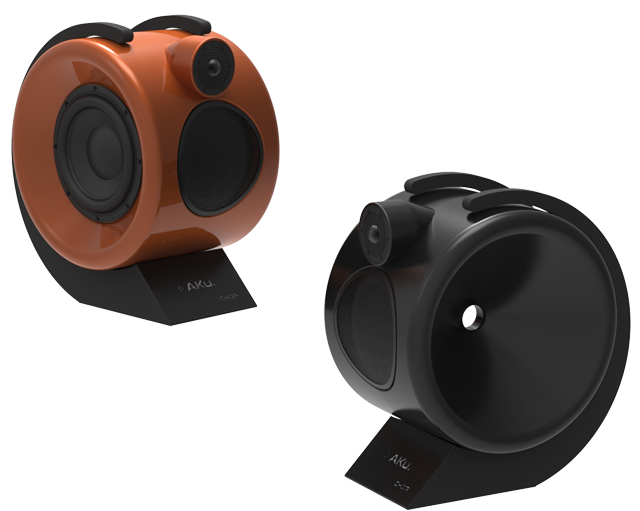

3. Ichor( € 10,000 - 운송 관세 미포함)
Technical Specifications
- System– Active 2-way, 2 chamber monitor with cast-aluminum proprietary body construction. Amplitude & time aligned. Ribbed, nonplanar internal surfaces.
– Minimal Vibration two material design. - Driver Composition– Mid-Bass section: Ichor boasts one 8″ carbon-paper, high-precision woofer.
Ichor EB adds two 10” aluminum passive radiators.
– Treble section: one 1,34″ aluminum-magnesium dome, neo motor high-excursion tweeter with high power handling, low distortion & cross capability.
- Frequency
Response– Ichor: -29Hz – 25000Hz @ +-2dB
– Ichor EB: -18Hz – 25000Hz @ +-2dB - SPL– Ichor: 110dB
– Ichor EB: 113dB - Stand– Wooden Stand with Amplifier Compartment Embedded.
– Felt lining to reduce friction and vibration. Min.+- 20deg. Vertical tilt adjustment.
- Amplification /DSP– One custom AKu-Hypex Ncore 2channel amplifier with DSP plus Digital and Analog I/O
– Three DSP presets (Maximally Flat, Bass Contour, Party Mode)
– Mid-Bass: 250Watt
– Treble: 100Watt
– Frequency Response: 10Hz-50KHz
– SNR: 118dB
– Distortion (THD+N): 0.006% @ half power
– Global Mains Voltage compatibility (100-240VAC)
– Efficiency: 92%
– Max Power Consumption: 350W
– Power Connector: 3-pin IEC 250Vac, 10A male
– Neutrik XLR balanced inputs for Analog & AES
– Hypex Gold RCA unbalanced input for Analog & S/PDIF
– Optical – Toslink input (up to 96KHz)
*use of a digital or analog preamp before the amp is advisable. - Dimensions
– Loudspeaker
H:560mm W:335mm D:510mm
H:22.04in W:13.18in D:20.07in - Weight– Ichor: 25kg / 55,10lb each
– Ichor EB: 27kg / 59,40lb each

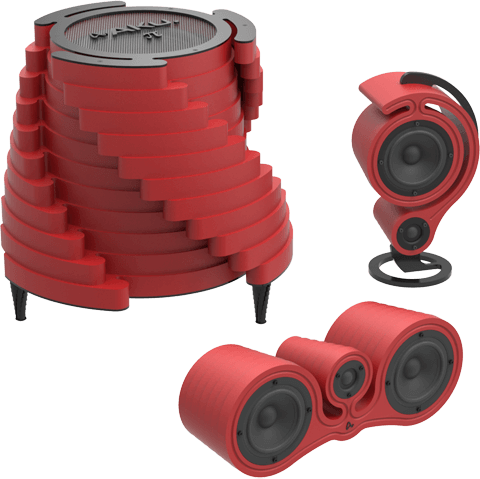

4. πerix
Technical Specifications
- Systemπerix sat: Passive 2-way, 2 chamber satellite with stacked mdf cabinet construction and laser-cut steel stands. Nonplanar internal surfaces. Mirrored Left-Right design.
πerix center: Passive 2-way, 3 chamber center channel satellite, with stacked mdf cabinet construction and laser-cut steel feet or wall mount. Nonplanar internal surfaces.
πerix sub v2.1: Active 250Watt subwoofer with stacked mdf cabinet construction, laser-cut steel covers and 3D-printed supports. Ribbed, nonplanar internal surfaces. Embedded 38mm braces.
πerix sub v5.1-7.2: Active 450Watt subwoofer with stacked mdf cabinet construction, laser-cut steel covers and 3D-printed supports. Ribbed, nonplanar internal surfaces. Embedded 38mm braces. - Driver Compositionπerix sat/center: Mid-Bass Section: one/two high-sensitivity 5,5” midwoofer with coated fiberglass cone, powerful magnet, die cast Alu chassis and low damping SBR surround.
Treble section: one 0,75″ damped silk diaphragm, high-power tweeter with high power handling and wide dispersion.
πerix sub v2.1: one 10” aluminum, long-excursion 250Watt subwoofer on top paired with one 10″ aluminum passive radiator at the bottom.
πerix sub v5.1-7.2: dual opposed push-push 10” aluminum, long-excursion 500Watt subwoofers. - Crossoverπerix sat/center: passive 3KHz – 2nd order Butterworth with high quality polypropylene capacitors, air-core inductors & zobel networks (proposed high pass: 140Hz BW24)
πerix sub: active 140Hz – 4th order Butterworth (preset in amplifier) - Frequency
Responseπerix sat/center: 140Hz – 22000Hz @ +-3dB
πerix sub v2.1: 22Hz – 180Hz @ +-3dB
πerix sub v5.1-7.2: 32Hz – 180Hz @ +-3dB - Nominal Impedanceπerix sat: 4 Ohm
πerix center: 8 Ohm - Connectionsπerix sat: Jack 6.3mm
πerix center: Jack 6.3mm
πerix sub v2.1: Neutrik Speakon
πerix sub v5.1-7.2: Neutrik Speakon
- SPLπerix sat: 106dB
πerix center: 109dB
πerix sub v2.1: 111dB
πerix sub v5.1-7.2: 115dB - Sensitivityπerix sat/center: 90dB (2,83V @ 1m.)
- Recommended Amplifier Wattageπerix sat: 50-120Watt RMS
πerix center: 50-200Watt RMS - Subwoofer Amplification / DSP– One custom AKu-Hypex Ncore 1channel amplifier with DSP and Analog Gain control
– Three DSP presets (Maximally Flat, Bass Contour, free for Personalization)
πerix sub v2.1: 250Watt
πerix sub v5.1-7.2: 450Watt
– Frequency Response: 10Hz-50KHz
– SNR: 118dB
– Distortion (THD+N): 0.006% @ half power
– Global Mains Voltage compatibility (100-240VAC)
– Efficiency: 92%
– Max Power Consumption: 350W (v2.1) – 650W (v5.1-7.2)
– Power Connector: 3-pin IEC 250Vac, 10A male
– XLR balanced input & loop Output
– Stereo RCA unbalanced input
– Stereo high level input
– Neutrik Speakon output - Dimensions
πerix sat: H:320mm W:222mm D:132mm
(without stand) H:12.60in W:8.74in D:5.20in
πerix sat: H:400mm W:242mm D:160mm
(desktop stand) H:15.75in W:9.53in D:6.30in
πerix sat: H:1200mm W:248mm D:340mm
(floor stand) H:47.24in W:9.76in D:13.38in
πerix center: H:191mm W:491mm D:154mm
H:7.52in W:19.33in D:6.06in
πerix sub: H:512mm W:550mm D:550mm
H:20.15in W:21.65in D:21.65in
πerix sub amp: H:140mm W:300mm D:76mm
H:5.51in W:11.81in D:2.99in - Weightπerix sat (w/o stand): 3,7kg / 8,14lbeach
πerix sat (w/desktop stand): 5,3kg / 11,66lb each
πerix sat (w/floor stand): 8kg / 17,60lbeach
πerix center: 5,7kg / 12,54lb
πerix sub v2.1 (w/amp): 42kg / 92,40lb
πerix sub v5.1-7.2 (w/amp): 42,2kg / 92,84lb

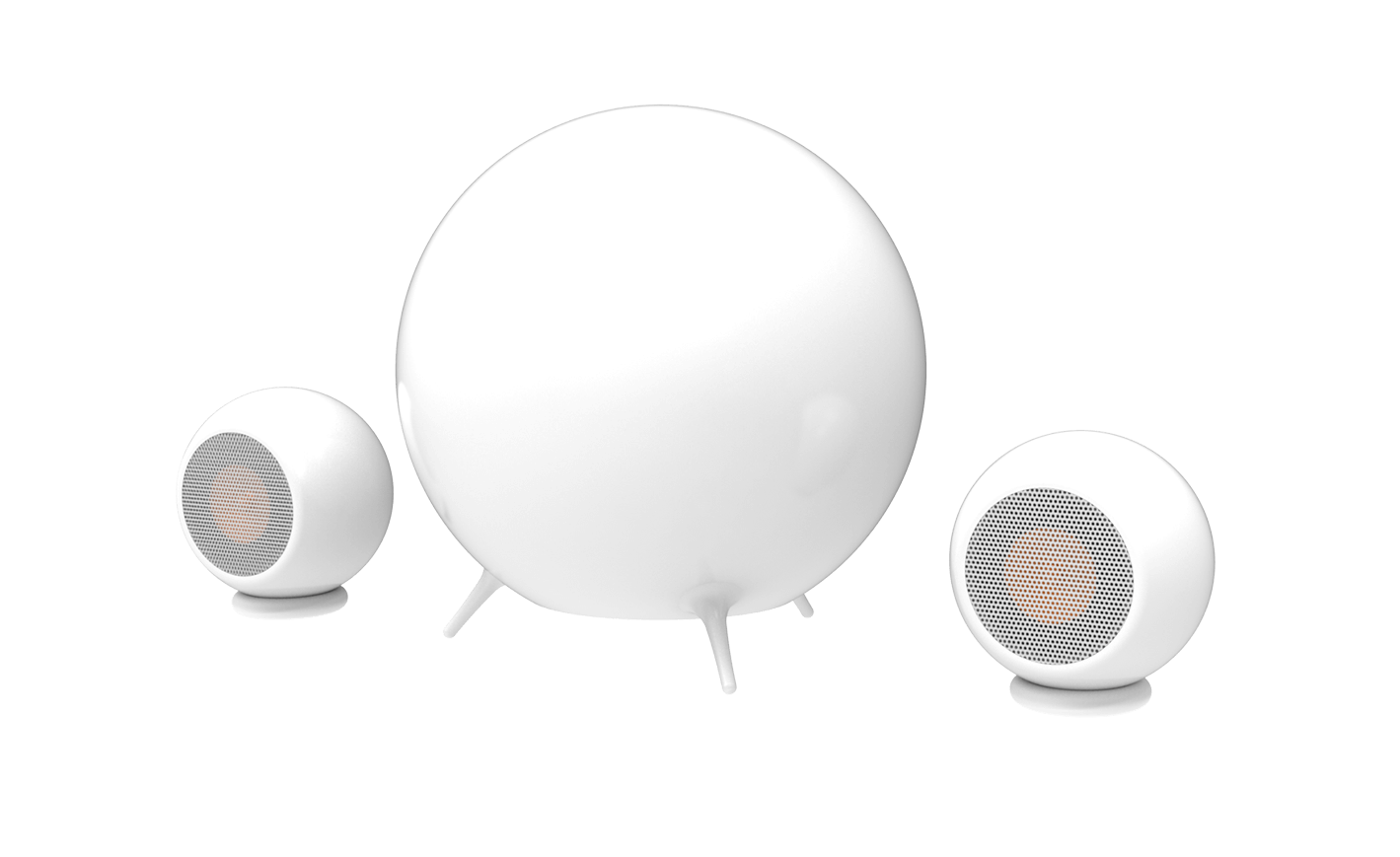

5. Drop
Technical Specifications
- Systemdrop sat: Passive full-range acoustic suspension satellite speaker, with lathe processed stacked mdf cabinet construction. Stepped, nonplanar internal surfaces.
drop sub: Passive 300Watt subwoofer with lathe processed stacked mdf cabinet construction. Stepped, nonplanar internal surfaces. - Driver Compositiondrop sat: one 4,3” full-range driver with metal cone, powerful magnet, and inverted rubber surround.
drop sub: one 8” subwoofer with treated non-pressed paper/Kevlar cone with rubber surround. - Crossover– Proposed sat-sub crossover frequency: 150Hz – 2nd order Butterworth or higher
- Frequency
Responsedrop sat: 120Hz – 20000Hz @ +-5dB
drop sub: 50Hz – 200Hz @ +-5dB - Nominal Impedancedrop sat: 8 Ohm
drop sub: 4 Ohm - Connectionsdrop sat: RCA female
drop sub: Jack 6.3mm
- Sensitivitydrop sat: 85dB (2,83V @ 1m.)
drop sub: 88dB (2,83V @ 1m.) - SPLdrop sat: 96dB
drop sub: 105dB - Recommended Amplifier
Wattagedrop sat: 5-20Watt RMS
drop sub: 100-200Watt RMS - Dimensions
drop sat: H:102mm W:102mm D:102mm
(without stand) H:4.01in W:4.01in D:4.01in
drop sub: H:475mm W:460mm D:460mm
H:18.70in W:18.11in D:18.11in - Weightdrop sat (w/o stand): 2,2kg / 4,84lbeach
drop sub: 24kg / 52,80lb each
