JBL이 복고를 미니까 나도! 하면서 맥에서도 출시하는군요. 원래 JBL과 McIntosh는 짝으로 많이 팔았으니까요.
스펙이야 그리 중요한게 아니니 대충보시고... 중요한건 가격이죠.
- C22 MK V - $ 6,000
- MC1502 -$ 11,000
C22 Specifications
ELECTRONIC SPECIFICATIONS
- Number of Channels2
- Total Harmonic Distortion0.08%
- Frequency Response+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 15Hz to 100kHz - Maximum Volts Out (Balanced / Unbalanced)16V RMS / 8V RMS
- Sensitivity High Level (Balanced / Unbalanced)900mV / 450mV
- Sensitivity Phono (Moving Coil)0.45mV
- Sensitivity Phono (Moving Magnet)4.5mV
- Signal To Noise Ratio (High Level)100dB
- Signal To Noise Ratio (Moving Coil)75dB
- Signal To Noise Ratio (Moving Magnet)75dB
- Voltage Gain (High Level)15dB
- Voltage Gain (Moving Coil)60dB
- Voltage Gain (Moving Magnet)40dB
- Input Impedance (Balanced / Unbalanced)44K ohm, 22K ohm
CONNECTIVITY
- Balanced Input2
- Unbalanced Input3
- Phono Input Moving Coil1 (adjustable)
- Phono Input Moving Magnet1 (adjustable)
- Upgradeable Digital Audio ModuleNo
- Digital Coaxial Input0
- Digital Optical Input0
- Digital MCT (DIN) Input0
- Digital USB Input0
- HDMI (ARC) Input0
- Digital AES/EBU Input0
- Balanced Fixed Output0
- Balanced Variable Output2
- Unbalanced Fixed Output0
- Unbalanced Variable Output2
- Headphone Output1/4" High Drive with Headphone Crossfeed Director (HXD®)
- Input Level MatchNo
- Home Theater PassThruNo
- Unbalanced Analog Connector TypePremium gold-plated solid brass
- Service Port0
CONTROL
- Tone ControlsBass and Treble
- Tone Bypass and Input AssignTone Bypass: Yes
Input Assign: No - RS232 Control InputNo
- Power Control Output2 Main, 2 Switched
- Rear Panel Data Port5
- Rear Panel IR Sensor InputYes
GENERAL SPECIFICATIONS
- Multi-Chassis or SingleSingle, two layer
- Output MetersNo
- Vacuum Tube or Solid StateVacuum Tube: (5) 12AX7A and (1) 12AT7
- Power Consumption (On)50 Watts
WEIGHTS & DIMENSIONS
- Dimensions (W x H x D)17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
- Weight25 lbs (11.3kg)
- Shipping Weight41.4 lbs (18.8kg)

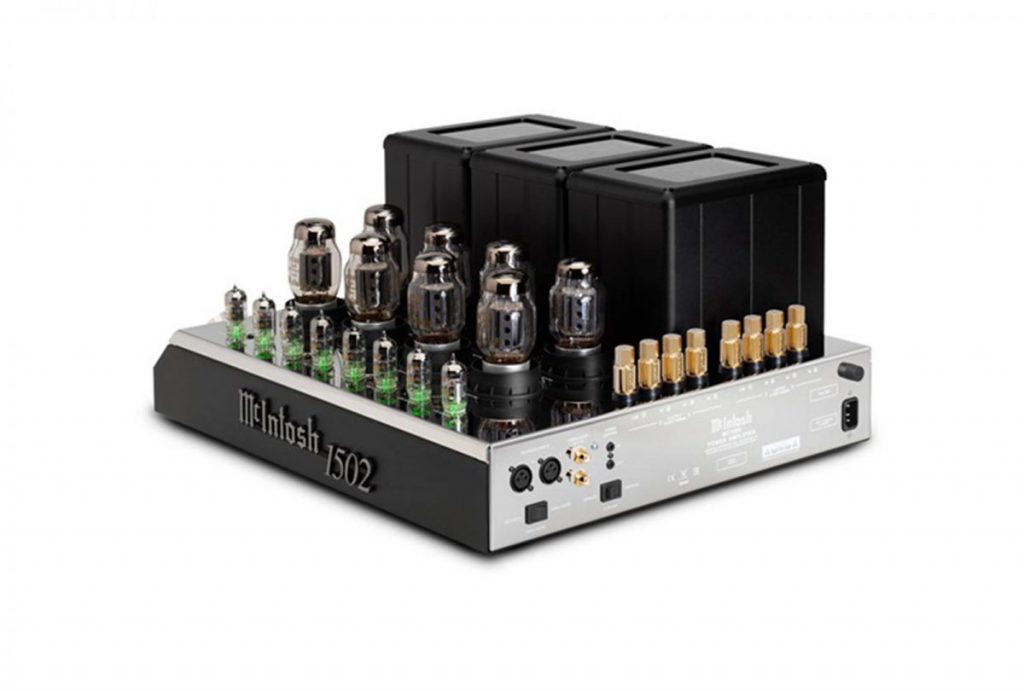

MC1502 Specifications
ELECTRONIC SPECIFICATIONS
- Power Output per Channel150W @ 2, 4 or 8 Ohms
- Number of Channels2
- Total Harmonic Distortion0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
(≤ 0.25% harmonic distortion at 1kHz) - S/N below rated output112dB
- Dynamic Headroom1.2dB
- Damping Factor>18
- Rated Power Band20Hz to 20kHz
- Frequency Response+0, -0.25dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 70,000Hz
CONTROL
- Remote Power ControlYes
- Multi-Channel DB25 CableN/A
CONNECTIVITY
- Speaker Binding Post TypePatented Solid Cinch™ Speaker Binding Posts
GENERAL SPECIFICATIONS
- Circuit ConfigurationUnity Coupled
- Circuit DesignVacuum Tube
- Mono BridgeNo
- Mono ParallelNo
- Output TypeUnity Coupled Output Transformer
- MetersNo
- Meter Light SwitchN/A
- Balanced Input2
- Front PanelN/A
- IlluminationSmall Signal Tubes: Green, Natural
- Chassis StylePolished Stainless Steel
WEIGHTS & DIMENSIONS
- Dimensions (W x H x D)18-1/4" (46.4cm) x 10-1/4" (26cm) (including feet) x 21" (53.3cm)
- Weight118 lbs (53.5 kg)
- Shipping Weight135 lbs (61.2 kg)
