LMC-1 을 1981년, LMC-2를 1982년에 내놓은 이후 40년이 흘러 3,4를 건너뛰고 5로 내놓았습니다. 요즘은 거의 MM이 많고 MM에서 변형된 MI로도 나오고 있습니다.
MC가 MM에 비해 출력이 낮아 잡음비등에 불리해서 주로 고급형으로만 나오는데 이렇게 선택의 폭을 넓혀주는것은 고마운 일이죠.
가격은 23만엔 예정

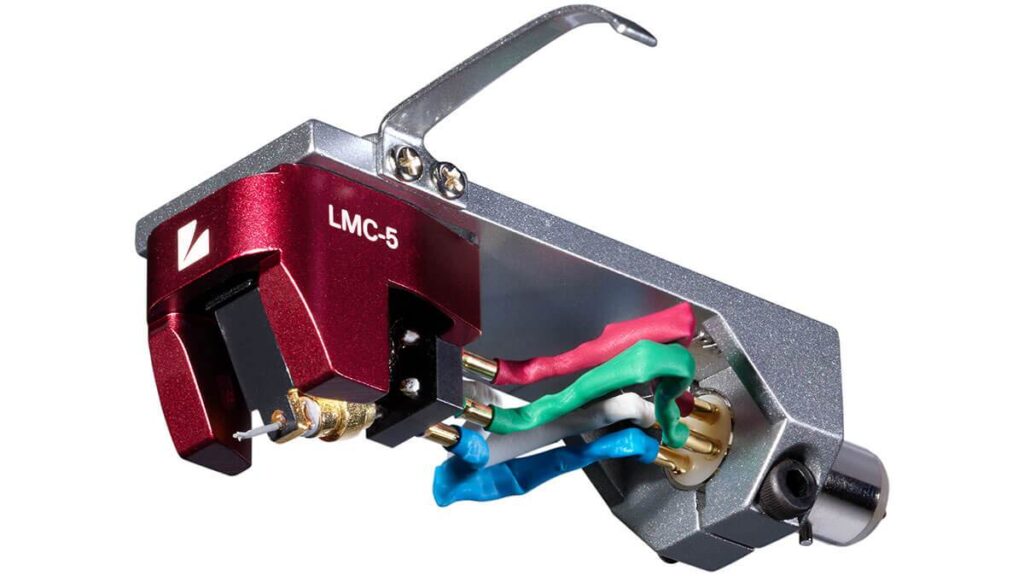

LUXMAN LMC-5 SPECIFICATIONS
- Power generation method MC (MOVING COIL)
- Inner impedance 4.7Ω (1kHz)
- Appropriate stylus pressure 2.1 to 2.3g (2.2g as standard)
- Output voltage 0.4mV (1kHz、3.54cm/sec.)
- Playback frequency range 10Hz to 35kHz
- Channel separation/balance 28dB (1kHz)／0.5dB (1kHz)
- Recommended load resistance (when head amp is connected) 40Ω or more
- Recommended load resistance (when connecting a step-up transformer) 2.5 to 10Ω
- Dynamic compliance 8×10-6cm/dyne (100Hz)
- Needle tip/shape Solid diamond/SHIBATA needle
- Cantilever Φ0.5mm aluminium
- Vertical tracking angle 25°
- Magnet Samarium-cobalt magnet BH20
- Coil 30μm UEW
- Terminal Φ1.2mm、White：L(+)／Blue：L(-)／Red：R(+)／Green：R(-)
- Magnetic circuit components Pure iron
- Body Aluminium A6063
- Dimension, Cartridge mounting hole 17.0(W)×18.3(H)×21.3(D) mm (excluding terminals) M2.6mm ×2
- Weight 8.5g
- Accessories: Owner’s manual, Head shell mounting screws and washers, hexagon wrench, stylus cover. (Cartridge shell and lead wire are not included)
