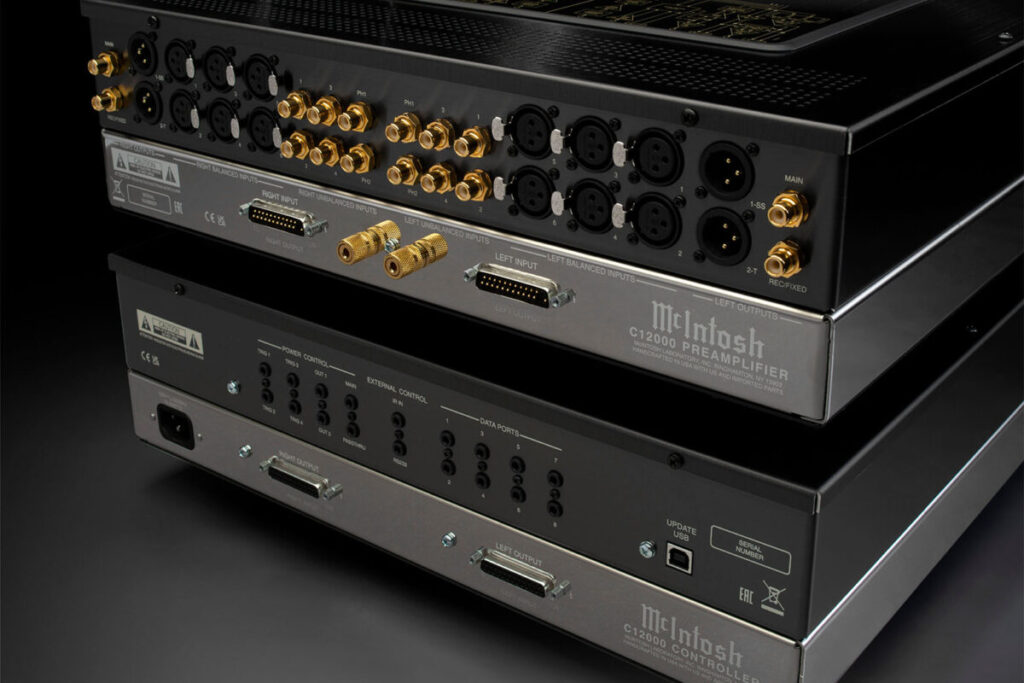

플래그쉽 앰프들이 전원부를 분리해서 두 덩어리짜리로 나오는 것은 특별한 일이 아닙니다만, 이 C12000은 전원부에서 전원과 데이터 컨트롤을 다양하게 할 수 있도록 해놨는데 과연 이게 어느 정도 효과가 있는지는 모르겠습니다.
증폭방식을 Solid와 Tube로 선택 가능하고, HXD(Headphone Crossfeed Director)가 있는 고출력 헤드폰 단자를 가지고 있습니다.
가격은 $16,000 로 부가세 별도.
Specifications
ELECTRONIC SPECIFICATIONS
- Number of Channels2
- Total Harmonic DistortionHigh Level: 0.005%
Phono: 0.05% - Frequency Response+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 100kHz - Maximum Volts Out (Balanced / Unbalanced)20V RMS / 10V RMS
- Sensitivity High Level (Balanced / Unbalanced)900mV / 450mV
- Sensitivity Phono (Moving Coil)0.25 – 2.5mV
- Sensitivity Phono (Moving Magnet)5 – 10mV
- Signal To Noise Ratio (High Level)107dB
- Signal To Noise Ratio (Moving Coil)79dB
- Signal To Noise Ratio (Moving Magnet)83dB
- Voltage Gain (High Level)15dB
- Voltage Gain (Moving Coil)58 – 64dB
- Voltage Gain (Moving Magnet)40 – 46dB
- Input Impedance (Balanced / Unbalanced)50K ohms, 25K ohms
CONNECTIVITY
- Balanced Input6
- Unbalanced Input4
- Phono Input Moving CoilUp to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)
- Phono Input Moving MagnetUp to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)
- Upgradeable Digital Audio ModuleNo
- Digital Coaxial Input0
- Digital Optical Input0
- Digital MCT (DIN) Input0
- Digital USB Input0
- HDMI (ARC) Input0
- Digital AES/EBU Input0
- Balanced Fixed Output0
- Balanced Variable Output2 (1 for Solid State, 1 for Vacuum Tube)
- Unbalanced Fixed Output1
- Unbalanced Variable Output1
- Headphone Output1/4" High Drive with Headphone Crossfeed Director (HXD®)
Selectable headphone impedances of: 16 ohms - 40 ohms, 40 - 150 ohms, 150 - 600 ohms - Input Level MatchYes, +/- 6dB
- Home Theater PassThruYes
- Unbalanced Analog Connector TypePremium gold-plated solid brass
- Service Port1
CONTROL
- Tone ControlsNo
- Tone Bypass and Input AssignNo
- RS232 Control InputYes
- Power Control Output1 Main, 2 Output, 4 Trigger
- Rear Panel Data Port8
- Rear Panel IR Sensor InputYes
GENERAL SPECIFICATIONS
- Multi-Chassis or SingleMulti Chassis (C12000C plus C12000ST)
- Output MetersC12000C: No
C12000ST: Yes - Vacuum Tube or Solid StateBoth (user selectable)
- Power Consumption (On)75 watts
WEIGHTS & DIMENSIONS
- Unit Dimensions (W x H x D)Each module: 17.5" (44.45cm) x 6" (15.24cm) x 18" (45.7cm)
- Unit WeightC12000C: 27 lbs (12.3 kg)
C12000ST: 25 lbs (11.3 kg) - Shipping WeightC12000C: 42 lbs (19.5 kg)
C12000ST: 40 lbs (17.7 kg)
