이제는 외관으로는 초창기 가성비의 MSB 모습을 전혀 찾아볼 수 없고, 하이엔드 브랜드의 디자인만 보이는군요. 프로쪽에서 하이엔드로 변신한건 dCS와 더불어 MSB가 대표적이죠. Pro 시장이 훨씬 크지만 그쪽도 그리 만만하지 않은 동네라서요.
가격은 VAT 포함 68,000€.(£58,000 GBP)
| The M205 Mono Amplifier (per mono amplifier) | |
|---|---|
| Static Power Consumption | 90 Watts On Standby power less than 2 watts |
| Operating Voltage Range | 120/240V (Auto switching) 100V (Fixed) |
| Fuse | 1/4"x1-1/4" 10A 250V Slow Blow |

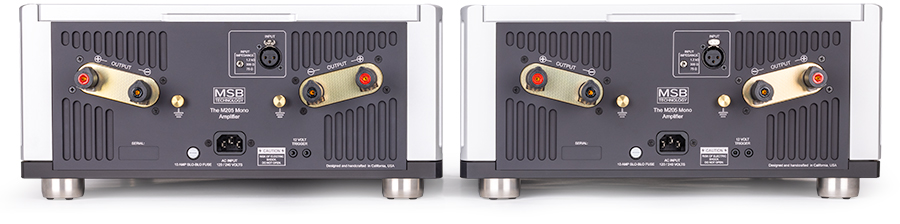

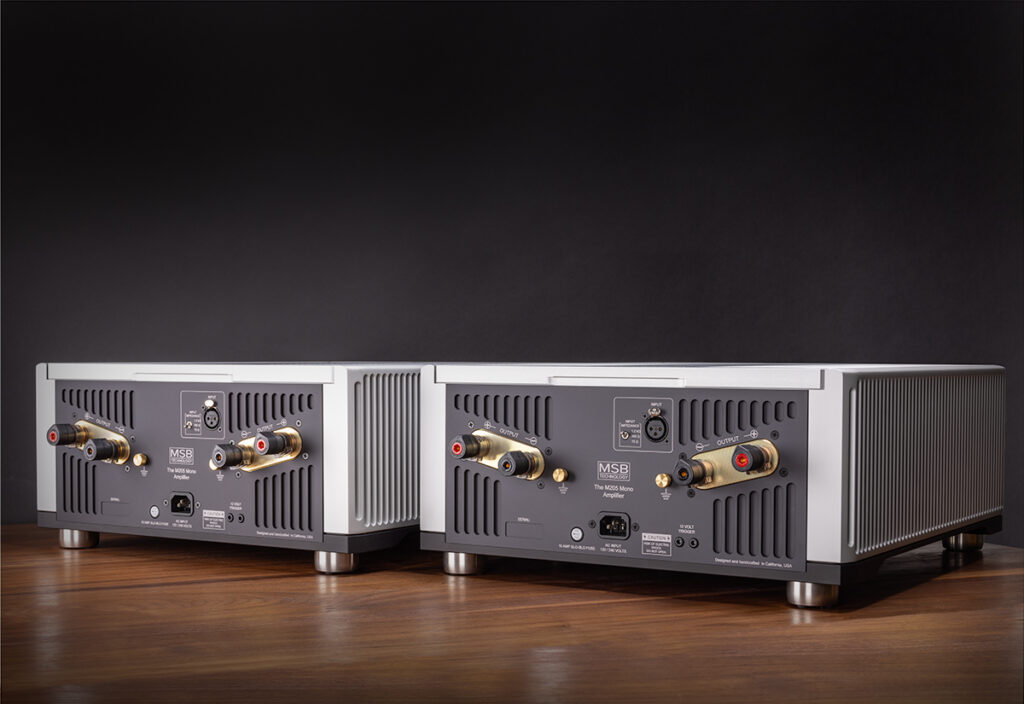

| Input | 1x XLR Input |
| Output | 2x Binding post set per channel |
| Controls | Input Impedance Switch On/Off Button Standby Button Display Dimmer 12V Mode Switch 2x MSB 12V trigger port |
| Continuous Power Output (8Ω) < 1% distortion | 220 W |
| Continuous Power Output (4Ω) < 1% distortion | 400 W |
| Dual Bi-Amp Continuous Power Output (8Ω) < 1% distortion | 200W |
| Dual Bi-Amp Continuous Power Output (4Ω) < 1% distortion | 380W |
| Frequency Response (20 to 20kHz) | ±0.03dB |
| Signal to Noise (20 to 22kHz) | >130dB (>133dBA) |
| Equivalent Input Noise (22kHz BW) | 0.65μV |
| Gain (150Ω source impedance) | 23.8dB |
| Input Impedance (User Selectable) | 75Ω / 300Ω / 1.2kΩ |
| Output Impedance (20 to 20kHz) | 0.01Ω |
| Topology | |

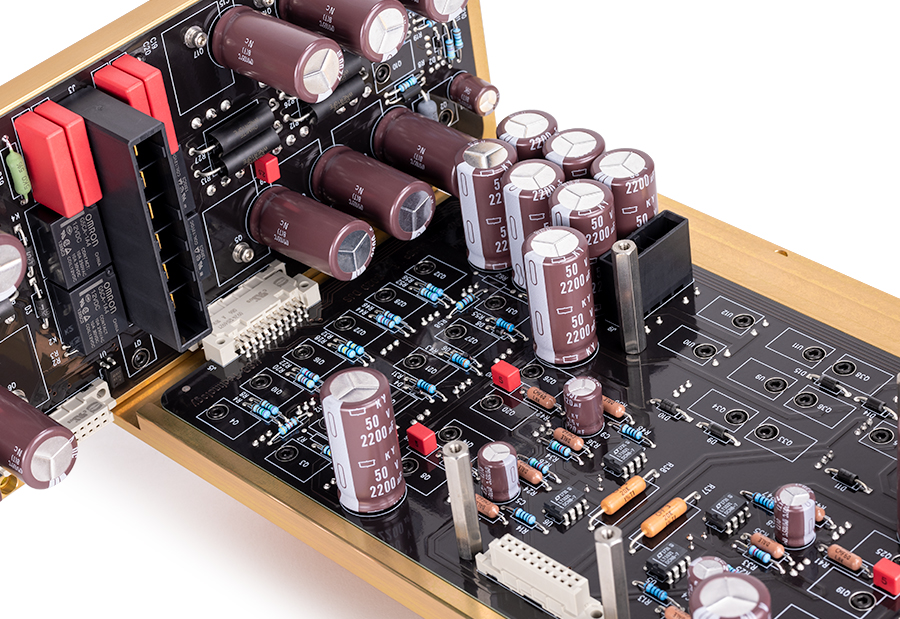

| Input/Gain Stage | - Class-A - Double balanced - Impedance matched - Fully discrete - Independent power |

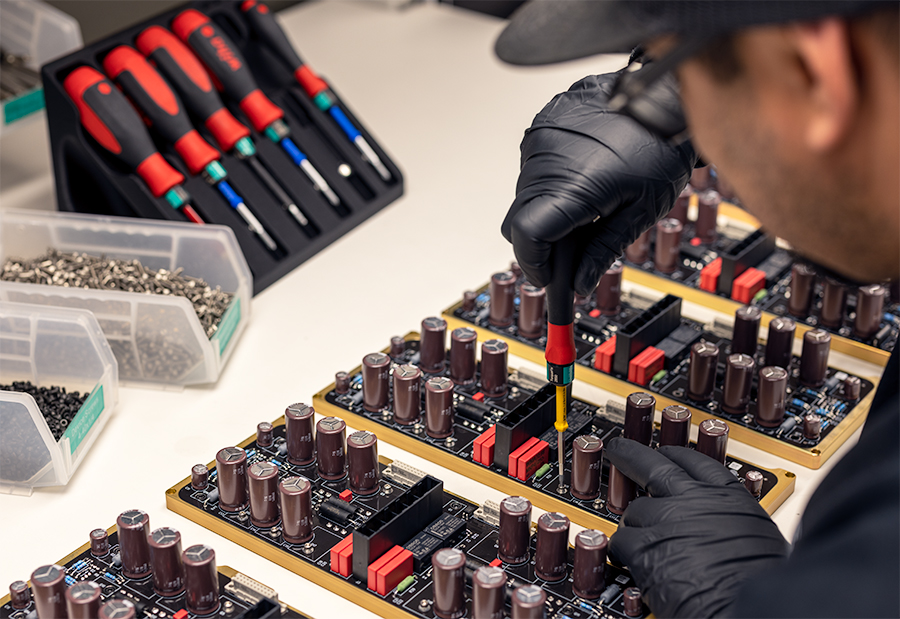

| Output Stage | - Class-AB - Balanced - Medium bias - Current gain only |
| Chassis Dimensions (Per Mono Block) | |
| Width: | 16 in (404 mm) |
| Depth: | 19 in (483 mm) |
| Height: | 6.5 in (165 mm) Without Feet 7 in (178 mm) With Feet |
| Weight: | 90 lbs (41 kg) |

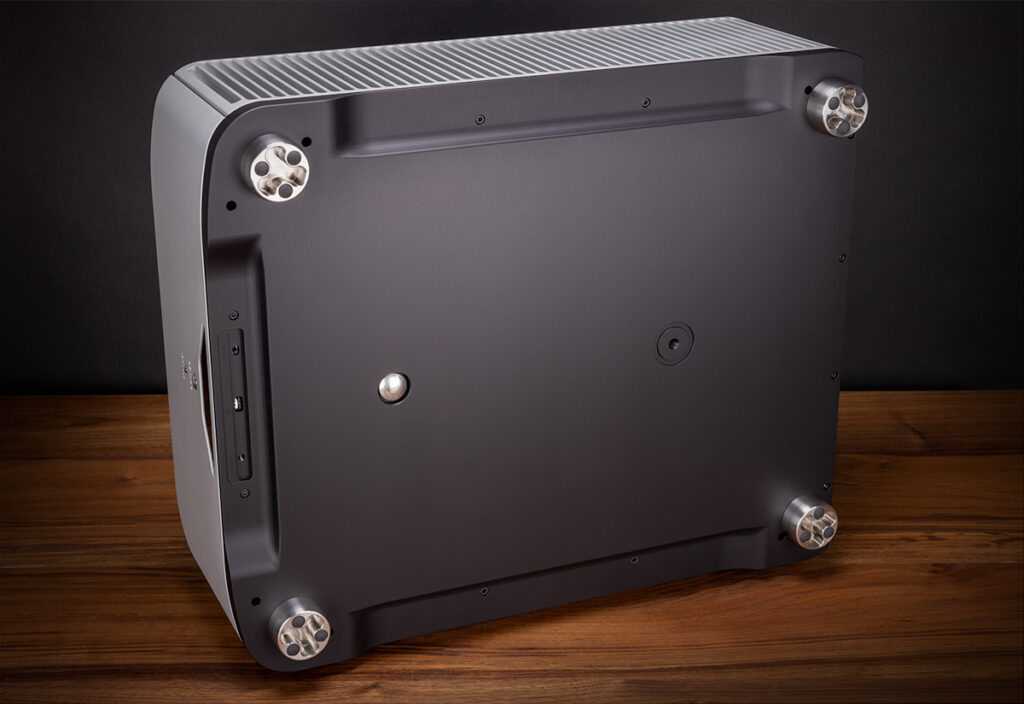

| Product Feet: | M6X1 Thread 3 or 4 Foot Configuration |
| Shipping Dimensions (Per Mono Block) | |
| Width: | 24 in (610 mm) |
| Depth: | 28.25 in (718 mm) |
| Height: | 16.5 in (419 mm) |
| Weight: | 137 lbs (62 kg) |
| Included Accessories | |
| User Manual IEC Power Cord |
