Cary Audio, 네트워크 플레이어 DMS-650 과 DMS-800PV 출시

hifiplaza 2022.02.03 · 조회 5

기존의 550 대체로 DMS-650을, 700 업버젼으로 DMS-800PV을 내놓았습니다. 숫자가 말해주듯 높은쪽이 상급모델인것은 당연하구요, 어찌저찌 좋았졌다고 하는 것도 일상적이죠.

가격은 DMS-800PV가 $14,995, DMS-650은 $5,995입니다. 차이가 상당하네요.

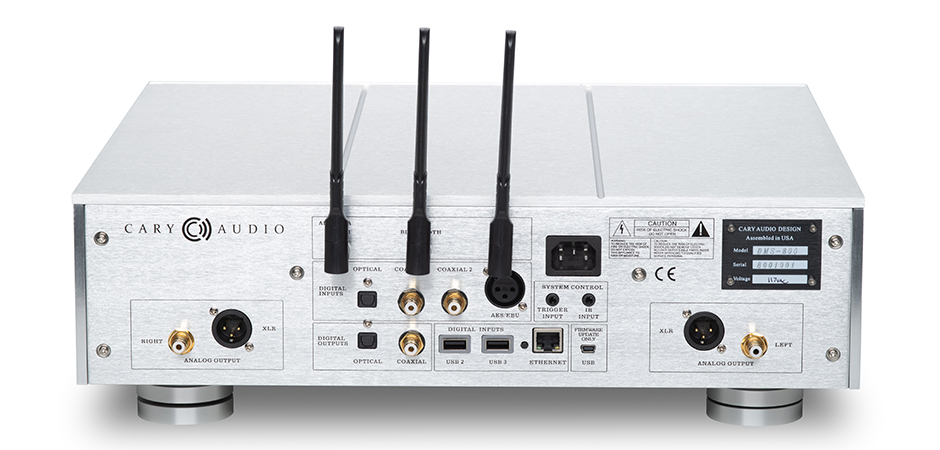

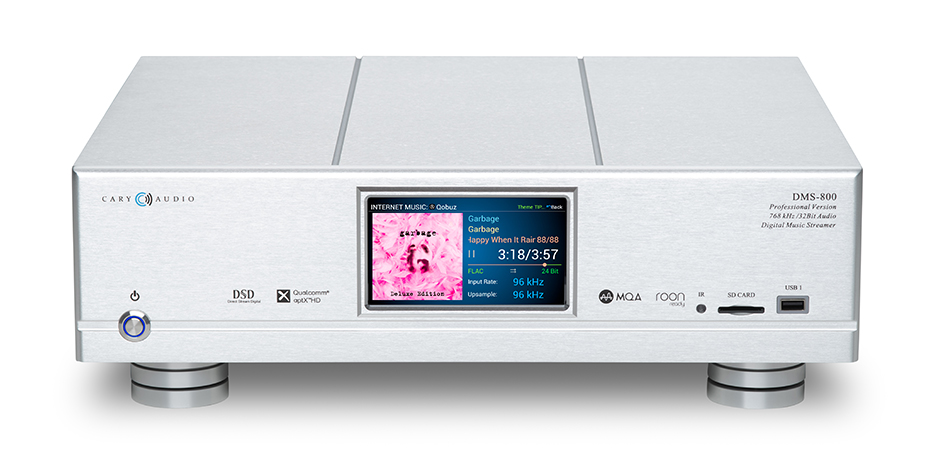

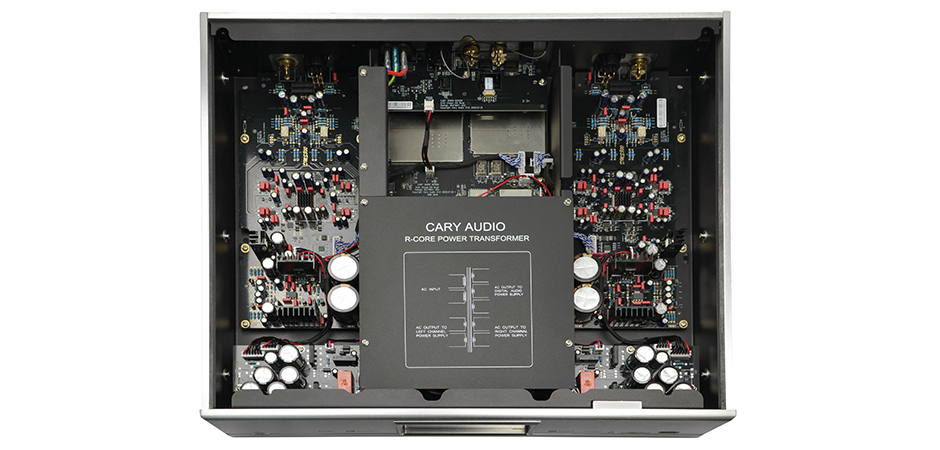

DMS-800PV

Master Clock Jitter	Below measurable levels
Digital Sampling Rates (Fs)	44.1 kHz to 768 kHz, DSD64 to DSD512
Digital Filter	32-Bit 8x Oversampling Digital Filter
Digital/Analog Converters	2 – 4 channel AK4499EQ for working on true balanced output
BLUETOOTH	CSR Bluetooth v 4.0 with aptX® HD for 24 Bit / 48 kHz high definition audio decoder
Analog Filter	3rd Order Bessel
Analog Outputs	Balanced XLR, Single – Ended RCA
Digital Outputs	Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 24 bit, DSD64, DSD128, DSD256 Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 bit to 24 bit, DSD64
Digital Inputs	USB x 3, SD Card x 1 BLUETOOTH x1 AES/EBU x1, Coaxial x2, Toslink x1
Digital Input Sample Rate	USB/HDD operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 32 bit, DSD 64, 128, 256 and 512. BLUETOOTH Sample Frequency (Fs) 48 kHz, 24 bit. AES/EBU, Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16bit to 24 bit, DSD64 to DSD256 Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16bit to 24 bit, DSD64
Control	Trigger input 12VDC x1 IR control x1
Communication	Ethernet RJ45 full remote configuration interface Wi-Fi 802.11 b/g/n/ac support MU-MIMO
Power Input	Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
AC Power Requirements	55 Watts
Finish	Custom aluminum chassis and faceplate available in either Silver or Black anodized finish
Weight	39.50 lbs
Dimensions	4.25″ H x 17.25″ W x 16.25″ D

AUDIO (LPCM)

Frequency Range	2 Hz – 22 kHz (44.1 kHz)
Amplitude Linearity	0.1 dB (20 Hz – 20 kHz)
Phase Linearity	3 degrees (20 Hz – 20 kHz)
Dynamic Range	129 dB (1 kHz) XLR OUT
Signal-to-Noise Ratio	127 dB (1 kHz)
Channel Separation	107 dB (1 kHz)
Total Harmonic Distortion	0.0001% (1 kHz)
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB 3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

NETWORK, USB, SD CARD PLAYBACK

Playback Format Supply	.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf
Frequency Range	2 Hz – 100 kHz +/- 3.0 dB
Signal System	16, 20, 24, & 32 bit PCM and 1 bit DSD
Sampling Frequency	44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD
Dynamic Range	129 dB @1kHz XLR OUT
DSD System Clock	Frequency 22.5792 MHz
Signal-to-Noise Ratio	127 dB
Audio Output Level	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB 3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

SPDIF PLAYBACK; COAXIAL, TOSLINK, AES/EBU (lPCM)

Frequency Range	2 Hz – 100 kHz +/- 3.0 dB
Signal System	16, 20, and 24 bit
Sampling Frequency	44.1 kHz to 768 kHz PCM, DSD64, DSD128, DSD256
Dynamic Range	129 dB @1kHz XLR OUT
System Clock	Frequency 22.5792 MHz
Signal-to-Noise Ratio	127 dB
Audio Output Levelb	2.0V RMS (220 Ω output impedance) for Volume at 0.0dB 3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output	+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

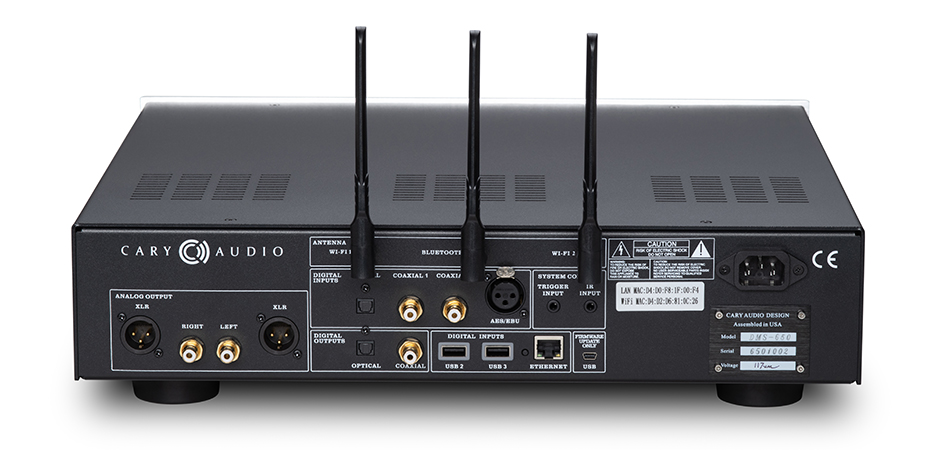

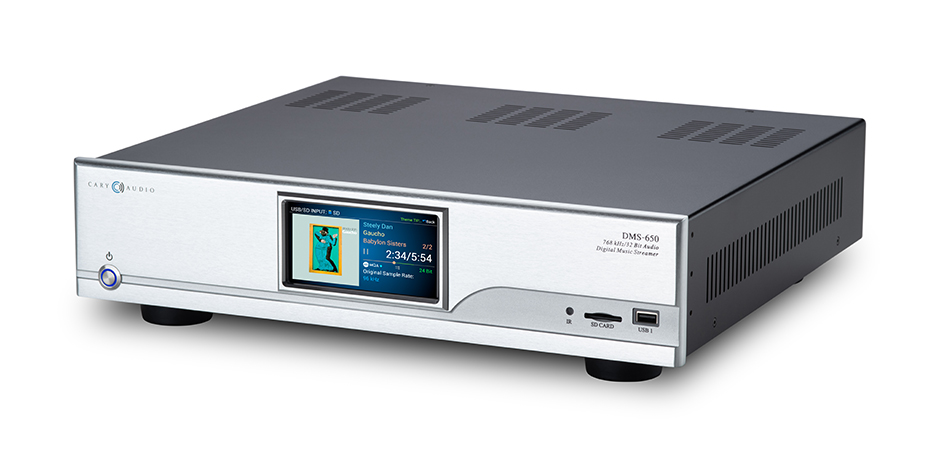

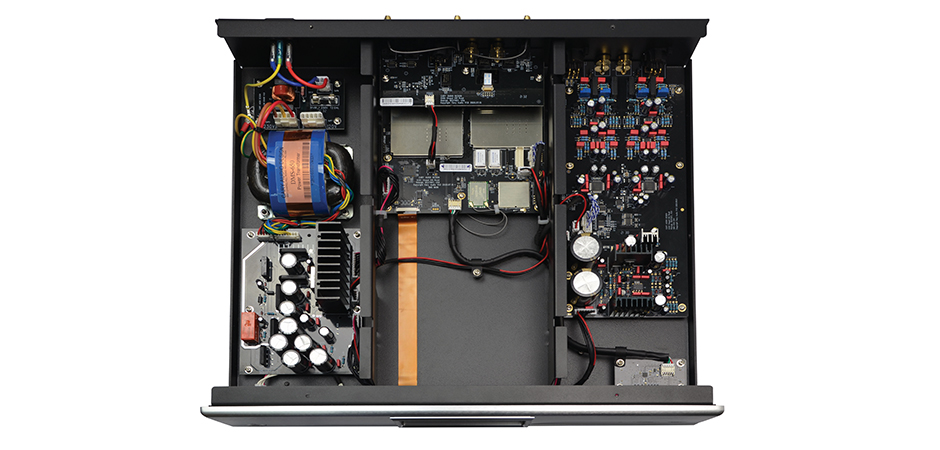

DMS-650

Master Clock Jitter	Below measurable levels
Digital Sampling Rates (Fs)	44.1 kHz to 768 kHz, DSD64 to DSD512
Digital Filter	32-Bit 8x Oversampling Digital Filter
Digital/Analog Converters	2 – 2 channel AK4497EQ for working on true balanced output
BLUETOOTH	CSR Bluetooth v 4.0 with aptX® HD for 24 Bit / 48 kHz high definition audio decoder
Analog Filter	3rd Order Bessel
Analog Outputs	Balanced XLR, Single – Ended RCA
Digital Outputs	Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 386 kHz, 16 bit to 24 bit, DSD64, DSD128 Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 bit to 24 bit, DSD64
Digital Inputs	USB x 3, SD Card x 1 BLUETOOTH x1 AES/EBU x1, Coaxial x2, Toslink x1
Digital Input Sample Rate	USB/HDD operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 32 bit, DSD 64, 128, 256, 512. BLUETOOTH Sample Frequency (Fs) 48 kHz, 24 bit. AES/EBU, Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16bit to 24 bit, DSD64 to DSD128 Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16bit to 24 bit, DSD64
Control	Trigger input 12VDC x1 IR control x1
Communication	Ethernet RJ45 full remote configuration interface Wi-Fi 802.11 b/g/n/ac support MU-MIMO
Power Input	Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
AC Power Requirements	45 Watts
Finish	Custom aluminum chassis and faceplate available in either Silver or Black anodized finish
Weight	28.6 lbs
Dimensions	3.75″ H x 17.25″ W x 16.25″ D
