완전 새로운 상품이기보다는 좀 더 팔아보겠다고 세트 구성한 것으로 보시면 되겠습니다. 하지만 이런 맞춤제품은 럭스만 정도의 브랜드라면 어느 정도의 성능도 보장된다고 볼 수 있으니 고민없이 구입할 수 있는 장점도 있죠.

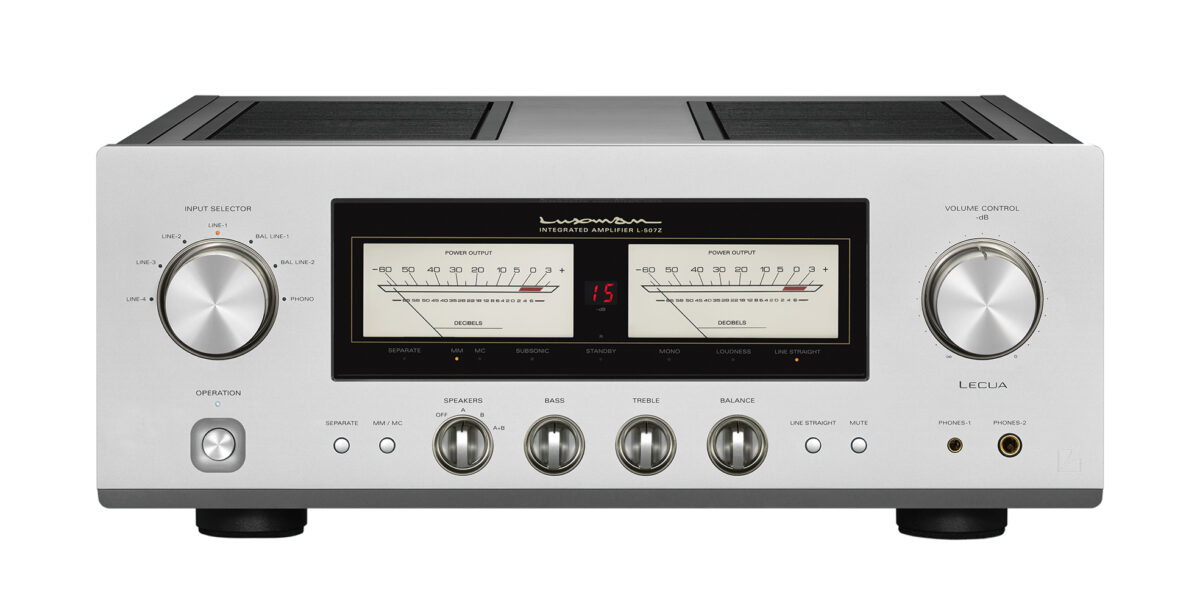

LUXMAN L-507Z
가격 : £8,000
| Rated output |
110W+110W（8Ω）
220W+220W（4Ω） |
| Input sensitivity/
input impedance |
PHONO（MM）: 2.5mV / 47kΩ
PHONO（MC ）： 0.3mV / 100Ω
LINE: 180mV / 47kΩ
BAL.LINE: 180mV / 79kΩ
MAIN IN: 1.05V / 47kΩ |
| Output voltage |
PRE OUT: 1V |
| Frequency response |
PHONO: 20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 100kHz (within -3dB) |
| Total harmonic distortion |
0.007% or less (8Ω, 1kHz)
0.03% or less (8Ω, 20Hz to 20kHz) |
| S/N ratio (IHF-A) |
PHONO (MM): 91dB or more
PHONO (MC): 75dB or more
LINE: 105dB or more |
| Volume adjustment |
New LECUA1000 |
| Amplification feedback circuit |
LIFES 1.0 |
| Output configuration |
Bipolar 3-parallel push-pull |
| Damping factor |
300 |
| Max. amount of tone control |
BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz |
| Power supply |
230V~(50Hz) / 115V~(60Hz) |
| Power consumption |
350W
886W (under no signal), 0.4W (at standby) |
| External dimensions |
440(W) x 178(H) x 454(D) mm
front side knob of 20mm and rear side terminal
of 27mm included in depth |
| Net weight |
25.4kg (main unit) |
| Accessories |
Remote control (RA-17A)
Power cable |
| Speaker terminal
Supported Y-lug terminal
dimension |
| Width of part a: 15mm or less
Width of part b: 8mm or more
* Connection may not be performed
depending on the shape of the
Y-lug terminal. |
|

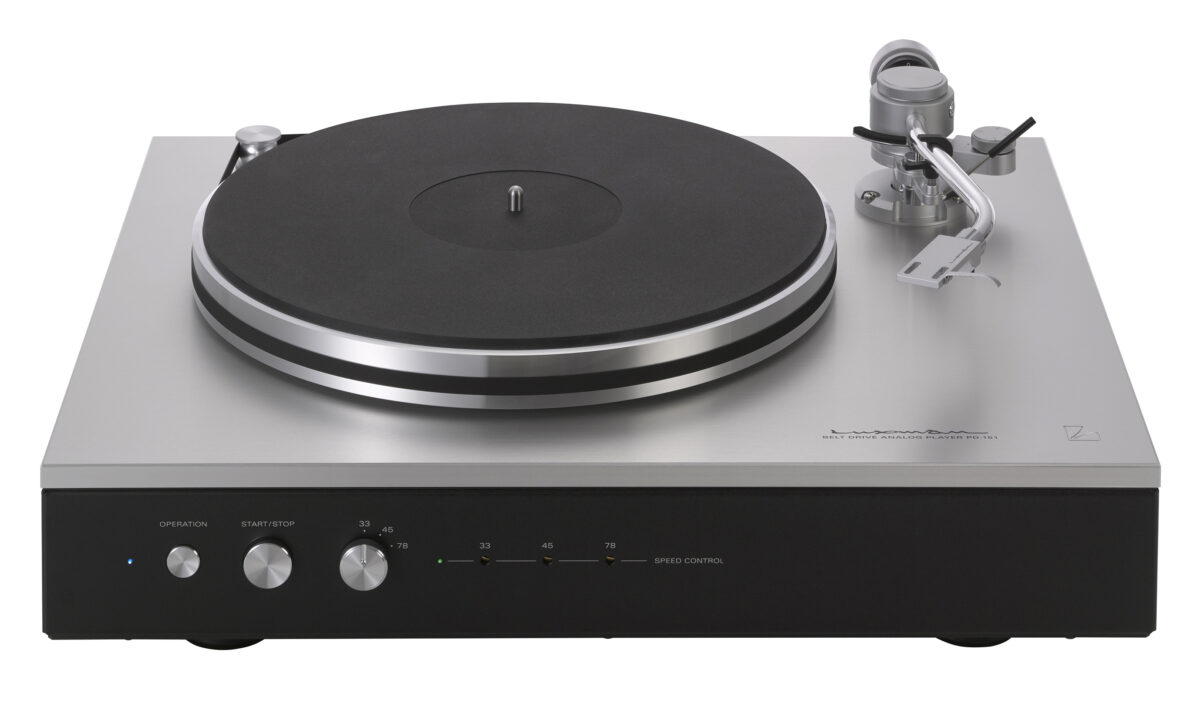

LUXMAN PD-151 MKII
가격 : £5,000
Phono motor section
| Drive system |
Belt drive system |
| Motor |
Brushless DC motor with PID control |
| Platter |
30cm machined alminum plate |
| Revolution |
33 1/3rpm, 45rpm, 78rpm(3 speeds selectable) |
| Revolution adjustment range |
±6%(each rotation speed adjustable independently) |
| Wow and flutter |
0.04% or less(W.R.M.S.) |
| Weight(Platter) |
4.0kg |
Tone arm section * Cartridge is not included
| Type |
Static balanced, S shaped, universal type |
| Bearing |
Single point cross suspension |
| Effective length |
229mm |
| Overhang |
15mm |
| Tracking error angle |
+1.9° to -1.1° |
| Applicable cartridge weight |
4 to 12g (including headshell 17 to 25g) |
| Adjustable height range |
38 to 60mm |
| Anti-skating |
0 to 3g |
Power source and others * Dust cover is not included
| Power source |
230V~ 50Hz |
| Power consumption |
6W |
| Dimensions |
465 (W) × 133(up to top face of platter)(H)×
393(D) mm |
| Net weight |
15.7kg (main unit) |
| Accessories |
Platter, Headshell, Rubber mat
Rubber belt,Platter mount handle (2pieces)
EP adaptor, Counterweight
Arm adjustment hex wrench set (3types)
Flathead screwdriver for rotation speed adjustment
phono cable (DIN→RCA : already installed on the unit), Power cable |
