SPECIFICATIONS

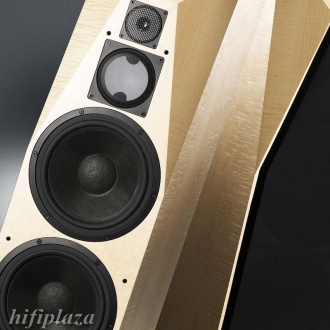

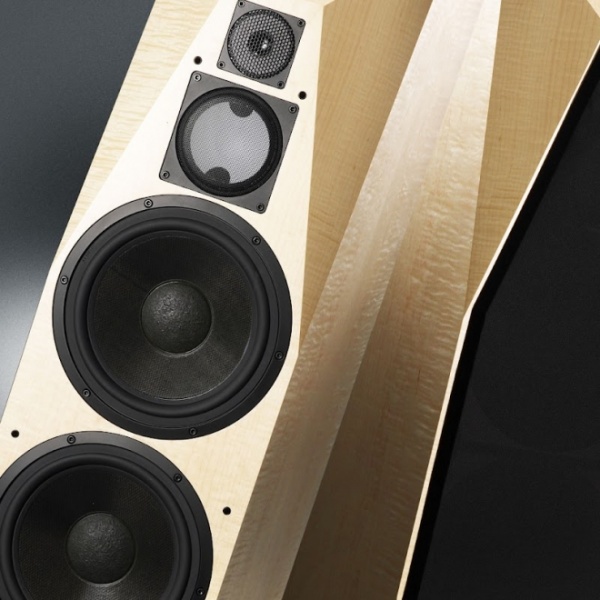

Driver Complement:
(1) 1" Concave Diamond Diaphragm Tweeter
(1) 3.5" Concave Ceramic Midrange
(2) 11" Nomex Kevlar Composite Cone Woofers with proprietary dual magnetic structures
All drivers utilize proprietary neodymium magnetic technologies.
Sensitivity:
89 dB @ nominal impedance
Impedance:
4 Ohms Nominal
Frequency Response:
20Hz to 50kHz
Recommended Amplifier Power:
50 to 600 watts
Wiring Methods:
Two position binding post
Dimensions:
46" High
12" Wide
19" Deep
Weight:
175 pounds each (79 kg each)
