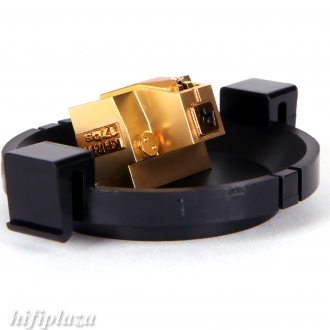

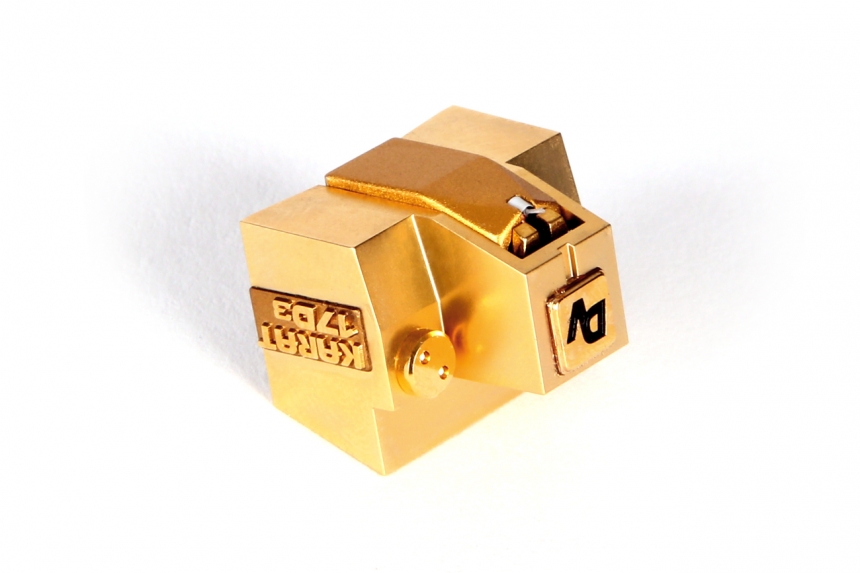

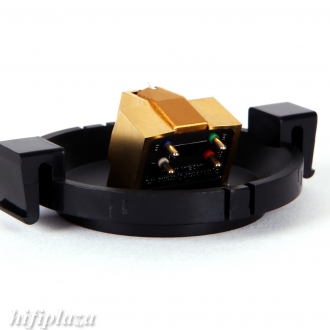

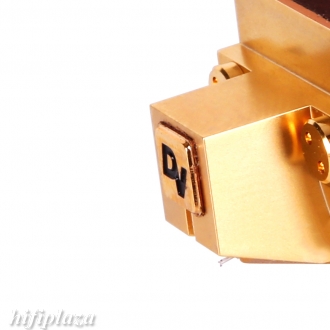

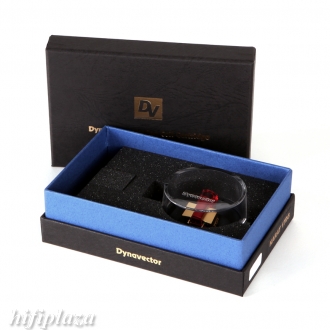

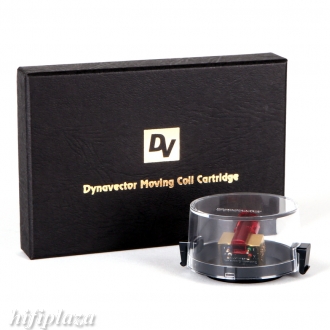

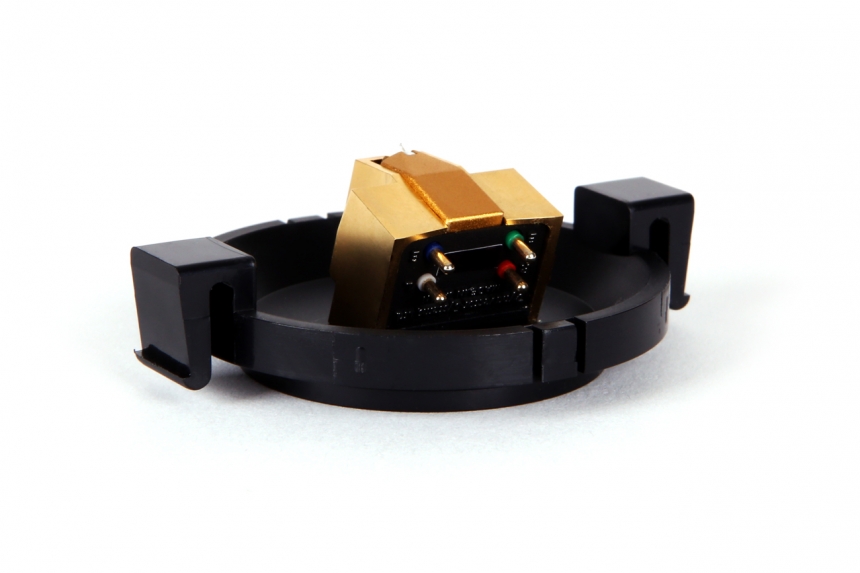

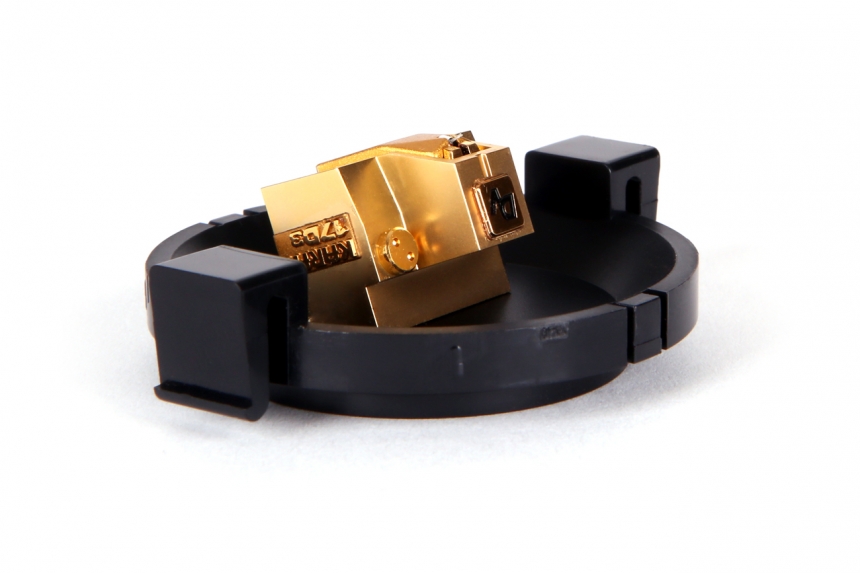

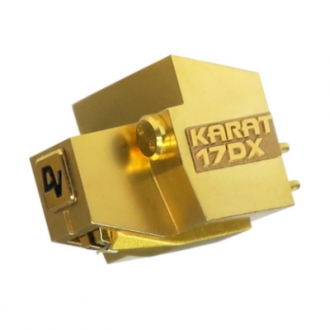

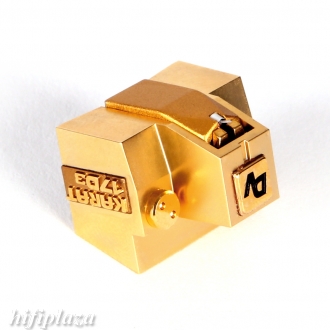

DV KARAT 17DX (0.3mV)





Specs



• Type Low output moving coil cartridge with flux damper and softened magnetism

• Output Voltage 0.3mV (at 1KHz, 5cm/sec.)

• Channel Separation 25 dB (at 1KHz)

• Channel balance 1.0 dB (at 1KHz)

• Frequency response 20 - 20,000Hz (± 1dB)

• Compliance 15 mm/N

• Tracking force 1.8 - 2.0 g

Impedance 32 ohms

• Recommended load impedance > 100 ohms

• Cantilever 1.7mm length solid diamond

• Stylus tip Micro-Ridge

• Weight 11.0 g
