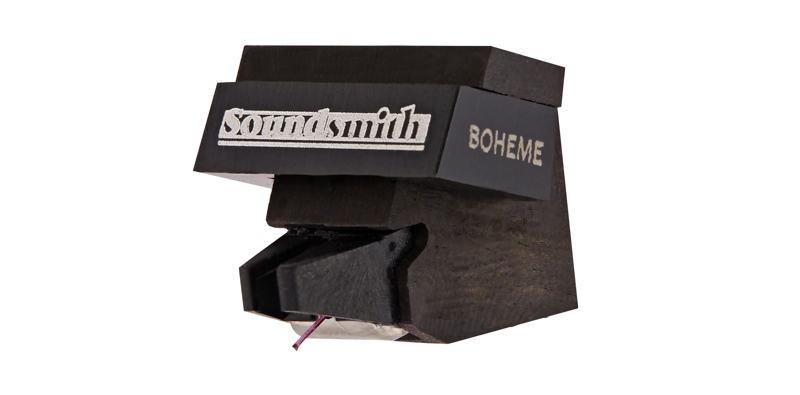

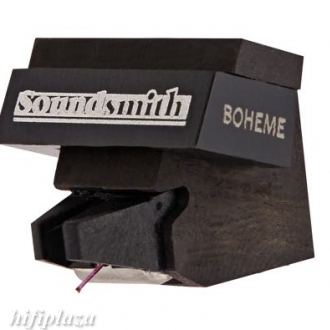

Soundsmith(사운드스미스) Boheme 카트리지
Specs
Type: Fixed Coil / Moving Iron
Mount: Standard ½”
Stylus: Contact Line, Nude, 0.12 mm square Selected
Radius of Curvature: Contact Line
Cantilever: Ruby
Recommended Tracking Force: 1.3 - 1.6 g Standard (Medium Compliance), 1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass: 0.32 mg
Compliance: 22 µm/mN (Medium Compliance), 28 µm/mN (High Compliance)
Frequence Response: 20 - 20,000 Hz ± 2.5 dB
Channel Separation @ 1000 Hz: > 28 dB, N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz: > 20 dB, N/A (Mono version)
Channel Difference: < 1.4 dB < 1.0 dB (Mono version)
Output Voltage @ 5cm/sec: > 2.12 mV (HIGH)
DC Resistance (DCR): 680Ω
Coil Inductance per channel: 190 mH
Suggested Preamp Gain: 38 - 44 dB
Cartridge Weight: 6.80 g
Recommended Load Resistance: ≥ 47kΩ
Recommended Load Capacitance: n/a
제품에 궁금한 사항이 있으시면 언제든 편하게 문의 전화 주시기 바랍니다.
010-6315-9971
)
!
