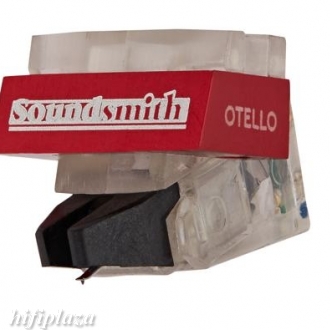

Soundsmith(사운드스미스) Otello 카트리지
Specs
Type: Fixed Coil / Moving Iron
Mount: Standard ½”
Stylus: Elliptical Titanium Bonded, 0.20 mm round
Radius of Curvature: 6 x 17 µm
Cantilever: Aluminum Alloy
Recommended Tracking Force: 1.3 - 1.6 g Standard (Medium Compliance),1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass: 0.50 mg
Compliance: 22 µm/mN (Medium Compliance),28 µm/mN (High Compliance)
Frequence Response: 20 - 20,000 Hz ± 2.5 dB
Channel Separation @ 1000 Hz: > 24 dB,N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz: > 20 dB,N/A (Mono version)
Channel Difference: < 1.8 dB,< 1.0 dB (Mono version)
Output Voltage @ 5cm/sec: > 2.12 mV (HIGH)
DC Resistance (DCR): 680Ω
Coil Inductance per channel: 190 mH
Suggested Preamp Gain: 38 - 44 dB
Cartridge Weight: 9.20 g (ES series)
Recommended Load Resistance: ≥ 47kΩ
Recommended Load Capacitance: n/a
