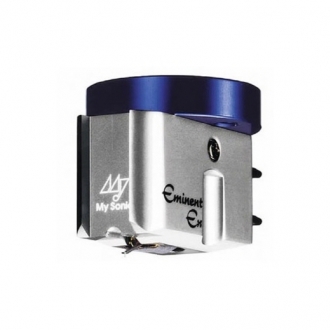

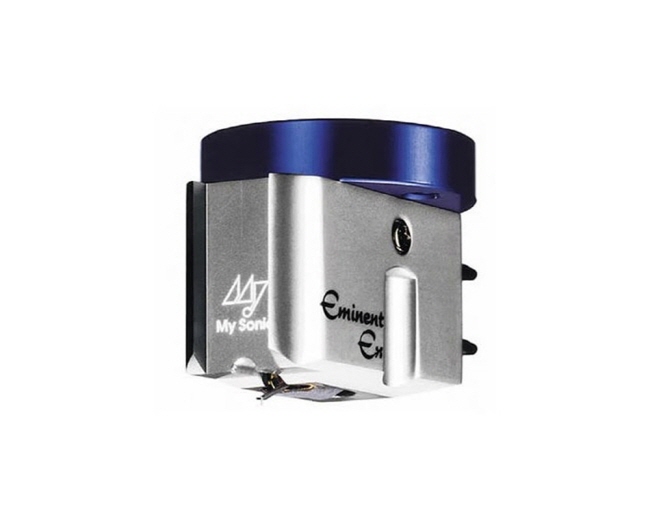

The My Sonic Lab Eminent EX is the top model in the My Sonic Lab Eminent Series of MC phono cartridges.
This model is a higher grade than the regular Eminent (without EX tag) and is not sold within Japan, only outside Japan.
The My Sonic Lab Eminent EX has 0.4mv gain while the regular Eminent has 0.5mv gain.
My Sonic Lab Eminent EX Specifications :
•Type : Low-impedance moving coil cartridge
•Frequency response : 10 - 50,000 Hz
•Output voltage : 0.4mV/1kHz
•Internal impedance : 0.9 Ω
•Loading : 100 - 800Ω (specifically, about 400Ω is recommended)
•Core material : SH-μX
•Magnet : Neodynium #50
•Stylus pressure : 1.9 - 2.2g
•Cantilever : Super-duralmine dual structure
•Stylus tip : Semi-line contact (3μm x 30μm)
•Channel balance : within 0.5dB (1kHz)
•Crosstalk : more than 30dB (1kHz)
•Terminals : shiny rhodium-plated pins
•Weight : 9.5g
)
!
