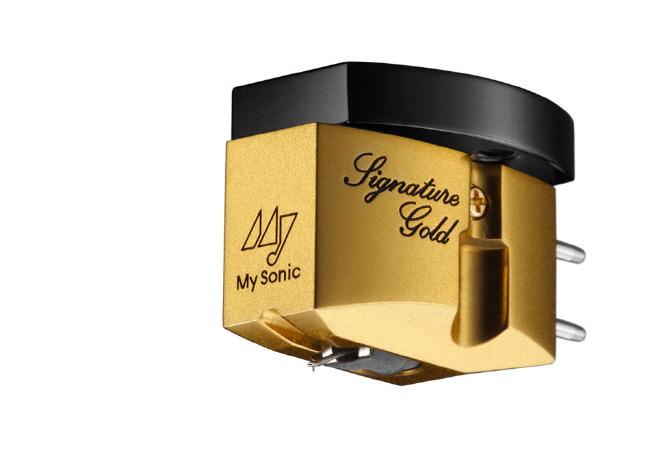

My Sonic Lab Signature Gold :
1. SH-µX core having intrinsic ultra Hi-Bs & Hi-µ: An astounding high-efficiency output 0.5mV under 1.4O inner resistance was
created thanks to the elaborated high-efficiency magnetic circuitry composed of our exclusive core with the least required windings of the coil wire.
2. Semi-line contact stylus: An amazing trackability was procured without tracking distortion by means of microscopic 0.1mm-square diamond tip of 3 x 30µmm semi-line contact.
3. Ultra-hard cantilever: Specially hardened duralmin pipe employed this time enables to reproduce powerful yet minute and delicate nuances of musical expression
4. The hyper-solid duralmin base makes the cartridge totally variation-proof and free from resonances.
5. The dramatically reinforced magnetism was obtained by means of refined core whose cross-sectional dimensions are enlarged by as much as
10%, compared to the current versions, at the cross-sectional dimensions.
형식 : 초저 임피던스 형 MC 카트리지
주파수 범위 : 10 ~ 50,000Hz
출력 전압 : 0.5mV (1kHz)
내부 임피던스 : 1.4Ω
적정 침압 : 1.9 ~ 2.2g (2g 중심)
캔틸레버 : 초 두랄루민 (A2017 경화재)
바늘 : 세미 라인 연락처 (3μm × 30μm)
채널 밸런스 : 0.5dB 이내 (1kHz)
크로스 토크 : 30dB 이상 (1kHz)
핵심 소재 : SH-μX (My Sonic Lab)
자석 : 네오디뮴 # 50
하우징베이스 : 초초 듀랄루민 (A7075 경화재) +3 층 금속 도금 + DLC 처리
터미널 핀 : 광휘 로듐 도금 처리
무게 : 약 10g
)
!
