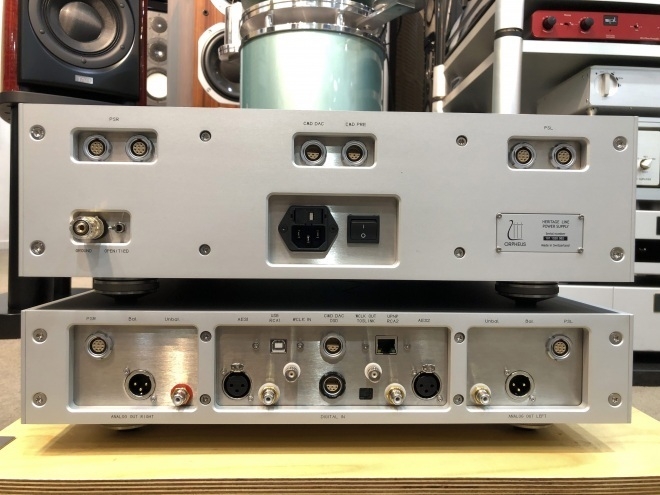

Digital inputs
2 x AES/EBU (24 bits @192 KHz) 2 x S/PDIF (24 bits @ 192 KHz)
1 x Orpheus DSD
(Compatible with SACD HE)
1 x DSD and PCM over USB
(Asio compatible 24bits @ 192KHz) 1 x Firewire (24 bits @ 192 KHz)
1 x Toslink (24 bits @ 192 KHz) Analog outputs
2 x balanced (XLR)
2 x unbalanced (RCA)
Word clock in/out
44.1 KHz, 48KHz, 96KHz, 192KHz Modules
1 x Master Clock Generator (MCG) 1 x Asynchronous Data
Processor (ADP)
2 x Upsampling & Scrambler Processor (USP)

Total Harmonic Distortion + Noise (THD + N)
115 dBr
Signal to Noise Ratio (SNR) 120 dBr
Linearity
less than 0.01 dB
(from 20Hz to 20KHz)
Noise floor
140 dB
Power consumption
Operating: 60W
Standby: 7W
Dimensions (WxLxH)
Power supply: 440 x 420 x 140 mm D/A Converter: 440 x 420 x 80 mm
Weight
Power supply: 24.3 Kg
D/A Converter: 11.7 Kg
