Specification
|

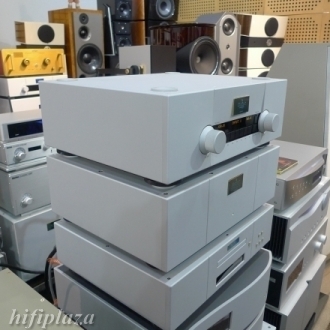

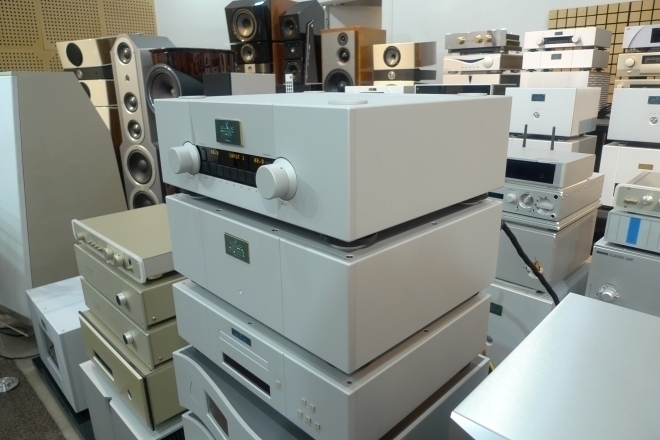

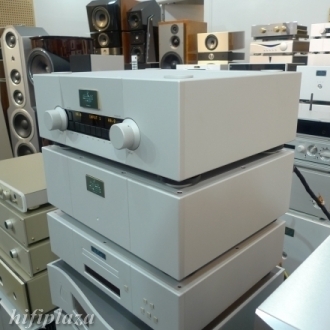

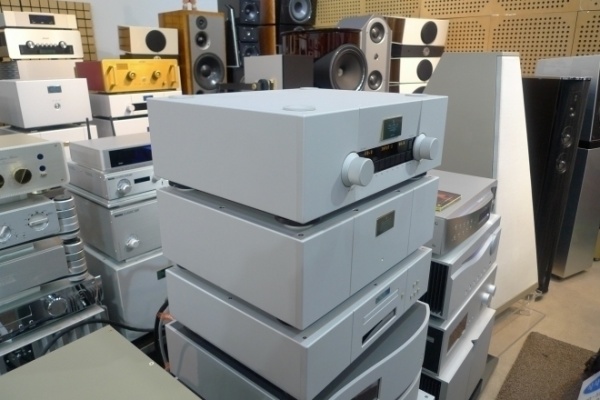

| Mimesis 22H NextGen Pre Amplifier |
|
OUTPUT LEVEL
|
Nominal level: 1.55 V RMS
Maximum output level (balanced): 9.6 V RMS
Maximum output level (unbalanced): 4.8 V RMS
Output impedance: 50 Ohms
|
|
FREQUENCY RESPONSE
|
These values for any level to 10 V RMS: +/- 0 dB, 20 - 20 kHz, +/- 3 dB, 0.2 – 1.2 MHz
|
|
INPUT SENSITIVITY
|
Nominal level: 100 mV
Saturation level: 5 V RMS
Nominal input impedance: 39 kOhms
Separated input level adjustment for each of the 7 line inputs: -12 to 12dB
|
|
INPUT LEVEL
|
Maximum input level (balanced): 9.6 V RMS
Maximum input level (unbalanced): 4.8 V RMS
|
|
GROUP DELAY
|
Propagation delay <300 ns stable with frequency from DC to 200 kHz
|
| DISTORTION |
1 Vrms output level, 80 KHz measurement bandwidth
600 ohms termination impedance
THD unbalanced in to unbalanced out 0.0002% flat with frequency
THD balanced in to balanced out 0.0001% flat with frequency
IMD unbalanced in to unbalanced out 0.0002%
IMD balanced in to balanced out 0.0001% |
| SPEED |
Slew rate of the amplification stages: 2500V/us Rise time: < 400 ns |
| CROSSTALK |
Separation: > 105 dB between channels (20Hz – 20kHz |
| NOISE |
Signal-to noise ratio on line input: > 120 dB (0.01 Hz - 10 MHz) Weighted ASA A: > 130 dB |
| OPERATING TEMPERATURE |
Room temperature: -30 to +40 degrees Celsius
Internal temperature: +45 to +70 degrees Celsius |
| POWER |
Nominal line voltage: 117 or 234 V
Input voltage range: +/- 10 %
Maximum power consumption: 70 W |
| GROUNDING |
Separated ground and earth signal
Connection optional between earth and ground to cancel all ground loops |
| SAFETY FEATURES |
Automatic switching to MUTING if the AC line drops or is interrupted
Automatic protection against tape loops |

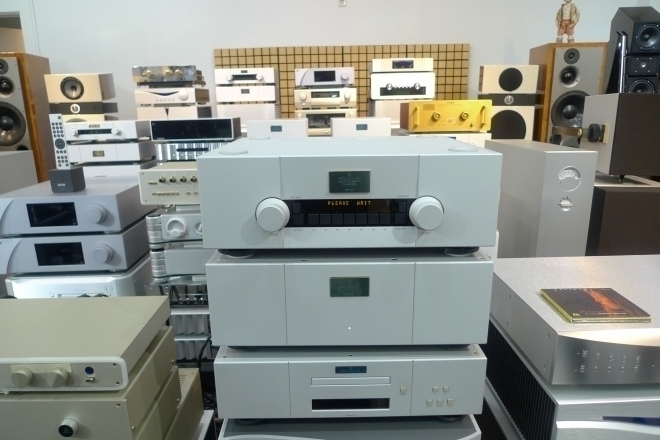

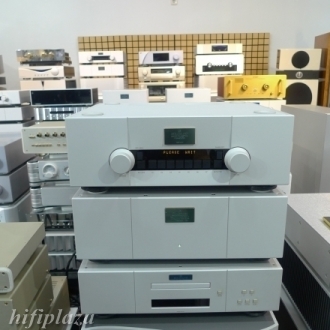

| FRONT PANEL CONTROLS |
MUTING/POWER switch with Led control
VOLUME control
BALANCE control
RECORD/MENU switch
PHASE/EDIT switch
7 INPUT CONTROL switches (with Led control) |

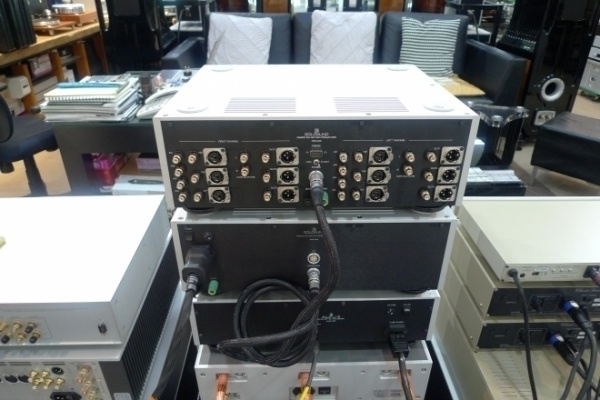

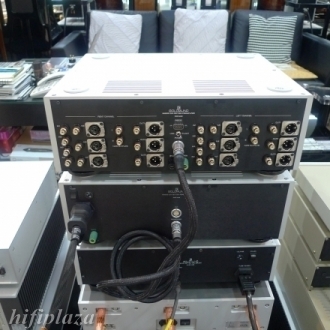

| REAR PANEL CONNECTORS & CONTROLS |
Power connector
Earthing post (yellow-green)
Output connectors XLR (right and left) balanced
Output connectors RCA (right and left) for Tape and Line outputs
Signal grounding post (black)
Input connectors XLR (right and left) balanced
Input connectors RCA (right and left)
for Tape and line inputs Link float RS232 Connector |
| POWER SUPPLY CONTROLS |
POWER cord socket (3 lugs)
MAINS FUSE (2.5A slow-blow)
VOLTAGE SELECTOR 110/115 V and 220/230 V |
| SIZE & WEIGHT |
Preamplifier: W440 x H165 x D400 (mm) 20 kg
Power Supply: W440 x H165 x D375 (mm) 25 kg |
)
!
