Gryphon Essence 순수 클래스 A 증폭 시스템은 Gryphon Pandora프리앰프와 스테레오 및 모노 블록 Mephisto 파워앰프에서 얻은 경험과 교훈을 바탕으로 개발되었습니다. 그리폰 에센스 (Gryphon Essence)는 모든 스타일의 음악에서 가장 미묘한 변화를 드러내기 위해 희미한 섬세함과 함께 권위를 발산하고 스피커를 완벽하게 제어합니다.
그리폰 에센스 (Gryphon Essence)는 음악적 권위와 완벽한 안락함의 완벽한 공생을 나타냅니다.
Features
• Exterior design by Flemming E. Rasmussen
• Electronics design by Tom Møller
• Zero negative feedback
• True Dual Mono configuration
• Fully discrete, DC-coupled Class A circuit topology
• Microprocessor-controlled 43-step fully balanced relay volume attenuator for best sonic performance based on a minimalist contingent of ultra-precision resistors
• High-speed, discrete, single-ended Class A input buffer for best possible sonic performance
• Optional PCM/DSD DAC module with one USB, 2 x SPDIF, 1 AES and 1 optical input. PCM up to Fs = 384 kHZ, DSD up to DSD512
• Optional MM/MC Gryphon PS2 phonostage module based on legendary Gryphon Legato head amp
• Local shunt regulators for optimal noise suppression
• Input level matching to prevent abrupt volume changes
• Ultra-short signal path
• Minimal internal wiring

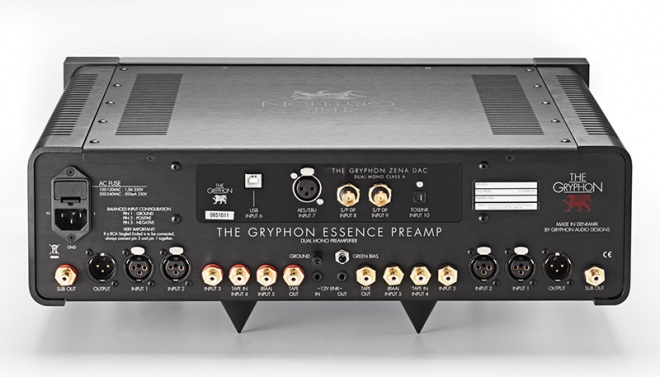

• Gold-plated Swiss Neutrik XLR sockets for two balanced sources and 1 output
• Gold-plated phono sockets with Teflon insulation for 3 inputs and 2 outputs
• Fixed-level AV throughput, balanced or single-ended, for uncompromising integration with separate surround preamplifier

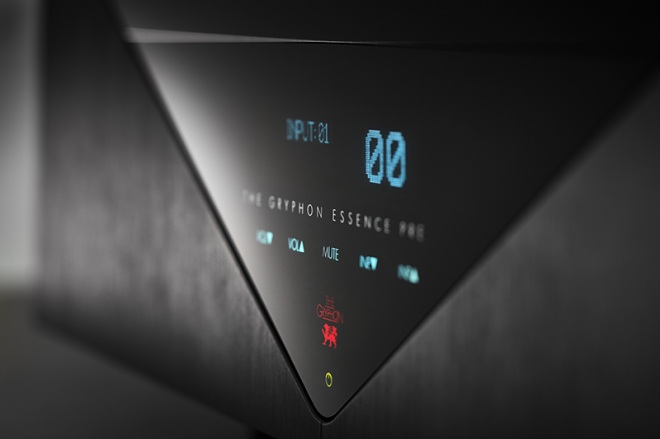

• Large Vacuum Fluorescent Display for easy legibility
• Adjustable display lighting (100/75/50/25%, Off)
• Backlit touch-sensitive front panel controls
• 12 V DC link input and output
• Green Bias link output for automatic Green Bias control with any Gryphon power amplifier

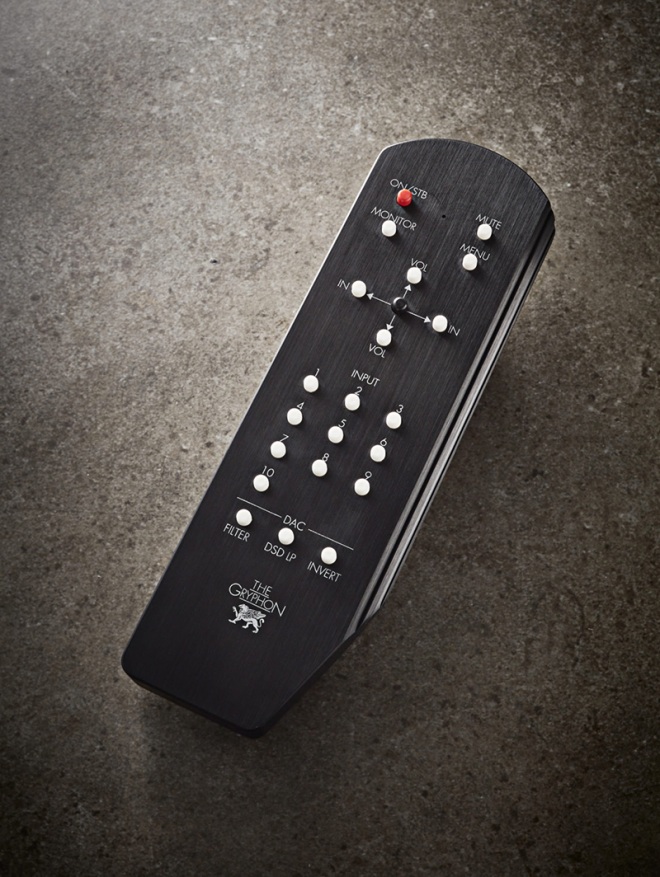

• Stylish infrared remote control
• Flash memory upgrades possible via PC or Key-fob
• EU CE approval
• Standby current consumption < 0.5 W
• Designed and built in Denmark
Specifications:
• +18 dB gain, max.
• Output impedance: 15 Ohm XLR, 22.5 Ohm RCA
• Frequency bandwidth (-3 dB): 0.1 Hz – 1 MHz
• Power supply capacity: 2 x 26,000 μF
• Input impedance, balanced (20 Hz – 20 kHz): 50 kOhm
• Input Impedance, single-ended (20 Hz – 20 kHz): 25 kOhm
Dimensions:
• 47 x 16.5 x 38.5 cm (WxHxD), 13.4 kg net.
All specifications are preliminary and subject to change without notice.
)
!
