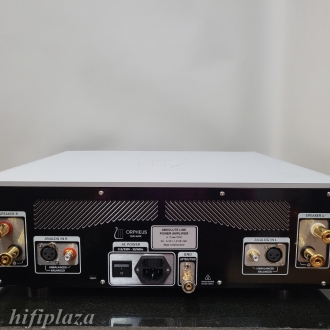

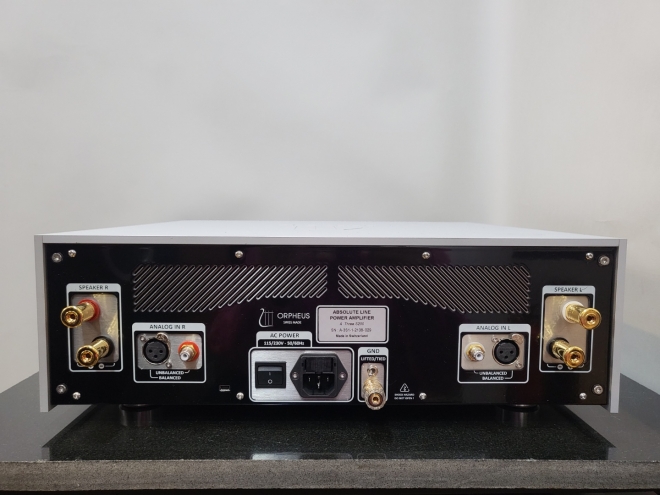

INPUT
|
|
Connections
|
XLR or RCA
|
|
Balanced input Impedance
|
94 kΩ
|
|
Unbalanced input Impedance
|
47 kΩ
|
|
Maximum Input Level (input Bal)
|
2 Vrms
|
|
Maximum Input Level (input Unbal)
|
1 Vrms
|
|
Grounding
Two possible modes selectable by a switch on the rear panel)
|
Grounded : Signal ground connected to earth
Lifted : Separated ground and earth signal
|
|
OUTPUT
|
|
Power RMS
|
200W @ 8Ohm
|
|
Power Pic
|
850W (max 56.7Vpic 15Apic)
|
|
Frequency range (+0dB, -0.1dB)
|
5Hz to 24kHz
|
|
Frequency range (-3dB)
|
0.7Hz to 85kHz
|
|
THD+N @ 200W per channel on 8Ohm from 22Hz to 22kHz
|
< 0.004% @ 1kHz
|
|
THD+N unloaded
|
< 0.001% @ 1kHz
|
|
Clip to Noise Ratio (input Bal)
|
-114dB
|
|
Clip to Noise Ratio (input Unbal)
|
-112dB
|
|
Gain unbalanced
|
32dB
|
|
Gain Balanced
|
26dB
|
|
Output impedance
|
0.0 Ohm
|
|
Damping Factor
|
> 3000
|
|
TECHNILOGY USED
|
|
Unique bias circuit guarantees a constant high bias current in all situations
|
|
Real dual mono topology with 6 High resolution MOSFET for a total of 48 Amp.
|
|
Three toroidal transformers, one per audio channel of 880VA each and one for digital.
|
|
POWER
|
|
Nominal line voltage
|
115 or 230 V
|
|
Input voltage range
|
+/-15 %
|
|
Maximum power consumption
|
805W
|
|
Standby consumption
|
Less than 1W
|
|
SIZE & WEIGHT
|
|
Height
|
148mm
|
|
Depth
|
440mm
|
|
Width
|
440mm
|
|
Weight
|
30kg
|
)
!
