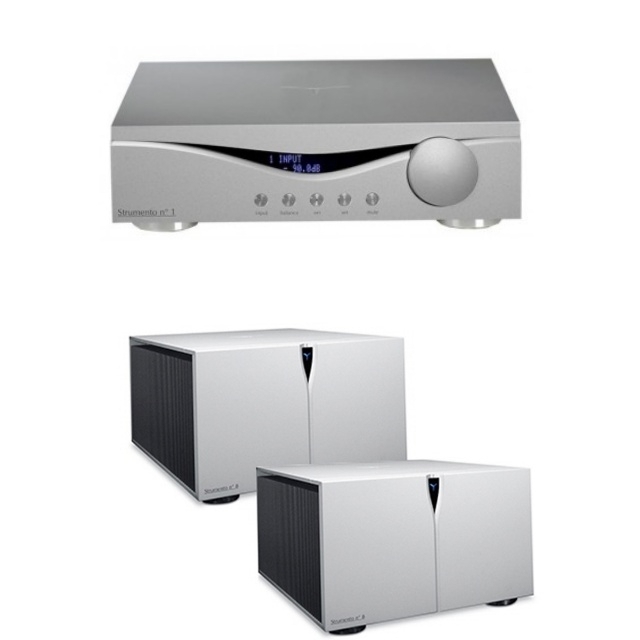

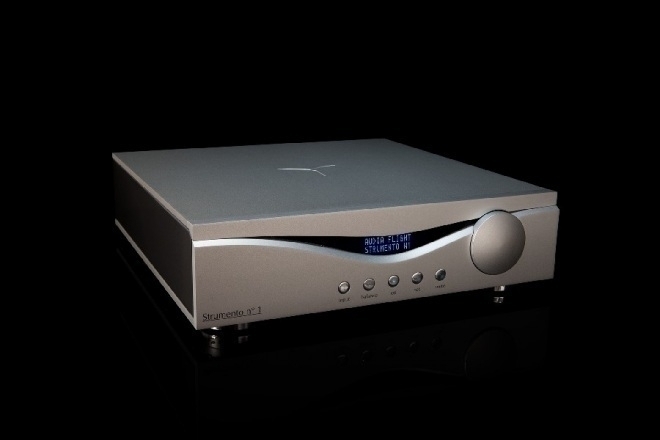

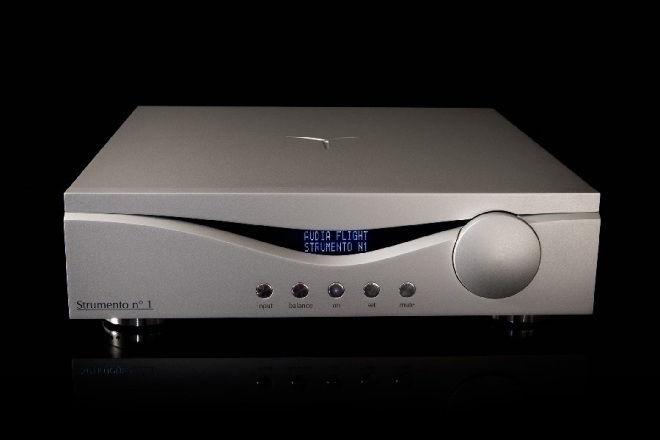

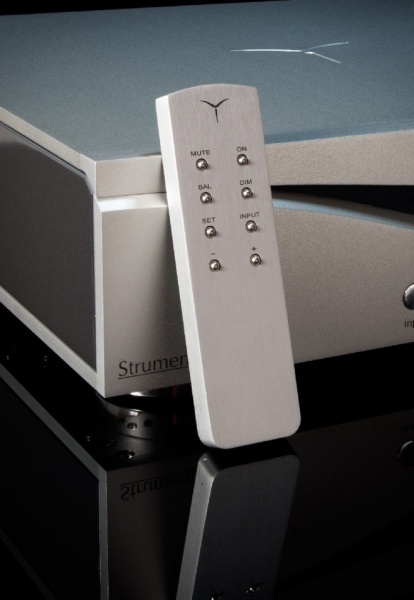

AUDIA FLIGHT /STRUMENTO N°1 mk2



Inputs2 balanced XLR and/or unbalanced RCA ; 3 balanced XLR only

Outputs2 balanced XLR and 1 unbalanced RCA

Gain range-90 dB / +10 dB

Gain resolution0.5 dB

Frequency response (1W RMS -3dB)1 Hz ÷ 1 MHzSlew-Rate (@ 8 ohm)/strong

>> 200 V/µSTHD< 0,05 %S/N Ratio105 dBInput impedance

10pF 15 kOhm balanced or unbalanced

Output impedance5 Ohm

Main voltage AC (50-60Hz)100, 110-115, 220-230,240 V

Stand-by Power consumptionless than 0,5W

Nominal Power consumption90W

Dimensions and weight450x120x450mm (W x H x D) - 28kg

Shipping dimensions and weight580x300x580mm (W x H x D) - 40kg

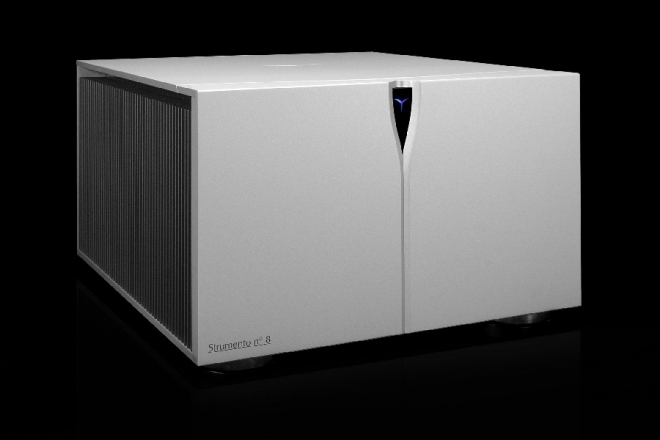

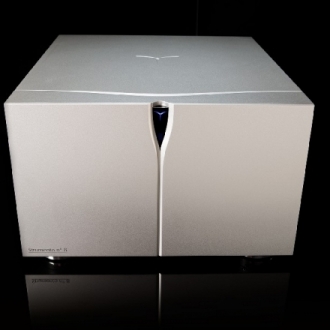

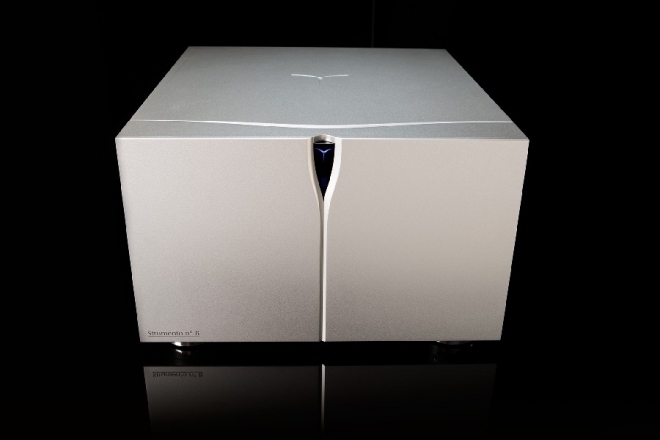

 Output power per channel Watts RMS @ 8/4/2 Ohm500/1000/2000W



                    Gain29 dB



                    Input sensitivity1.41 Volts RMS



                    Frequency response (1W RMS -3dB)0,3 Hz ÷ 1 MHz





                    Slew-Rate (@ 8 Ohm)> 200 V/µS



                    THD< 0,05 %



                    S/N Ratio110 dB



                    Input impedance Unbalanced7,5 kOhm



                    Balanced7,5 kOhm



                    Damping factor (@ 8 Ohm)> 1000



                    Main voltage AC (50-60Hz)100, 110-115, 220-230, 240 V



                    Stand-by Power consumptionless than 1W



                    Nominal Power consumption (no signal)330W



                    Power consumption (600W RMS @ 8ohm)1100 W



                    Dimensions and weight450x280x500mm (W x H x D) - 95kg
