SPECIFICATION
POWER SUPPLY
• Nominal line voltage: 115 V or 230 V.
• Input voltage range: +/- 15 %.
RATED POWER CONSUMPTION
• IEC 60065, 1/8 Output Power at 8 Ω: 220 W.

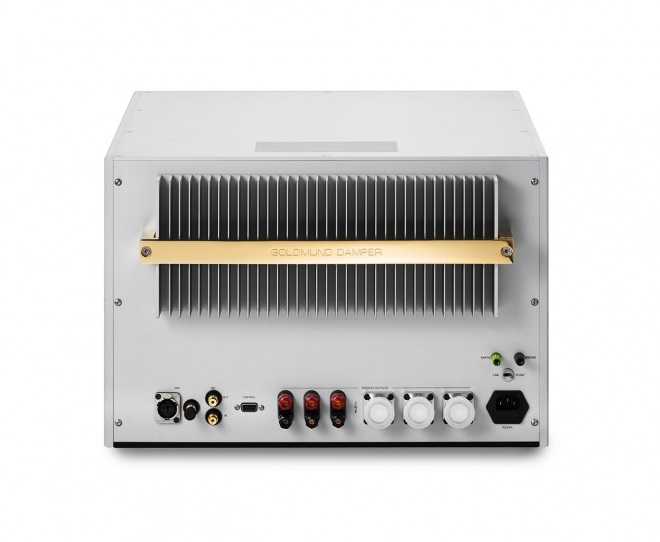

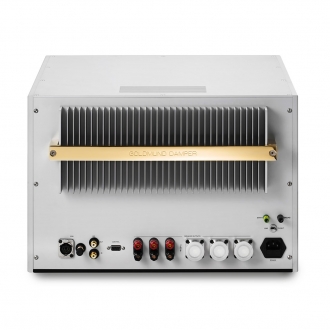

REAR PANEL
• Power cord: universal socket 3 lugs.
• Main fuse (4 A slow-blow for 230 V) ; (8 A slow-blow for 115 V).
• AC black GND binding post.
• 3 x binding post 5-way connector.
• 3 x output speaker coaxial connector.
• Analog RCA input (unbalanced connector).
• Analog XLR input (balanced connector).
• Digital input and output RCA connectors.
• Ground lift switch.
• RS232 command connector.
INPUT
• Max level before clipping, Analog input: 1 Vrms.
• Max level before clipping, Digital input: -6 dBFS.
OUTPUT
• Max level before clipping, 1 % THD, unloaded: 170 Vpp.
OUTPUT POWER
• Maximum power (IEC60065): 365 Wrms on 8 Ω / 1 % THD.
DISTORTION
• IMD (SMPTE), unloaded: < 0.05 %.
• THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output.
OUTPUT NOISE FLOOR
• Analog input terminated with RCA Shorting Caps, unloaded: < 3 μV from 20 Hz to 20 kHz.
GAIN
• 35 dB, +/- 9 dB (adjustable in steps of 3 dB for each input).
DYNAMIC RANGE
• 22 kHz measurement bandwidth (flat), true RMS unloaded: 110 dB.
DAMPING FACTOR
• 600 at 1 kHz / 8 Ω.
SIZE & WEIGHT
• 46 W x 32 H x 50 D (cm) – 17.3 W x 11 H x 19.3 D (inch).
• 75 kg.
)
!
