SPECIFICATIONS
Input sensitivity:1.55 Vrms
Input impedance:10 kohm
Voltage gain:+35 dB or +26 dB, switch-selectable
Peak power output:1000W/8ohm,2000W/4ohm,2ohm stable
Peak output voltage:89 Vac, ±126 Vpp
Peak output current:70 A
Frequency range:1Hz–100kHz
Full-power bandwidth:5Hz-25kHz
Minimum rated load:4ohm
Damping factor:> 1000
Output noise:< 35uVrms
Dynamic range:> 126 dB linear; > 132 dB A-weighted
THD+N:< -92dB (0.0025%)
Mains voltage:230/115Vac, factory pre-configured
Power draw:150W idling; < 20W standby
Max current draw:< 8A / 230V

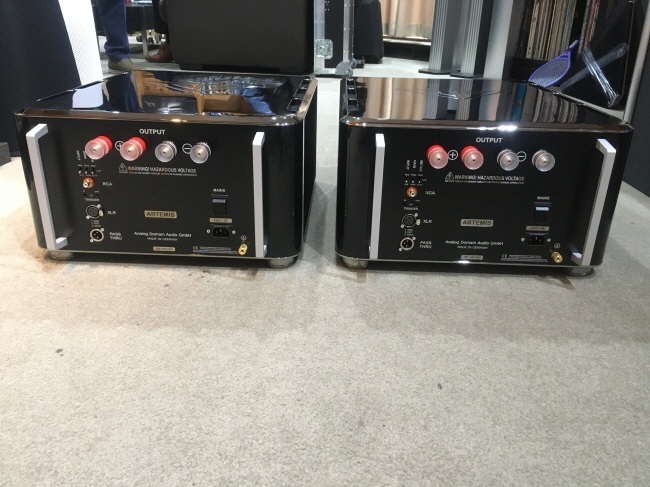

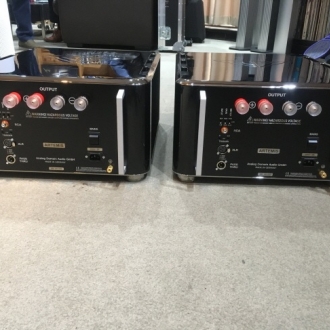

Inputs:XLR balanced, RCA unbalanced
Trigger voltage:12V in, 12V out
Trigger input/output:3.5mm jacks
Dimensions:440(w) x 254(h) x 545(d), mm
Weight:~65kg, 95kg shipping
)
!
