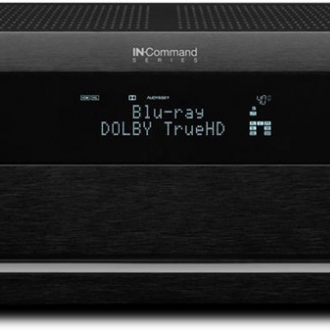

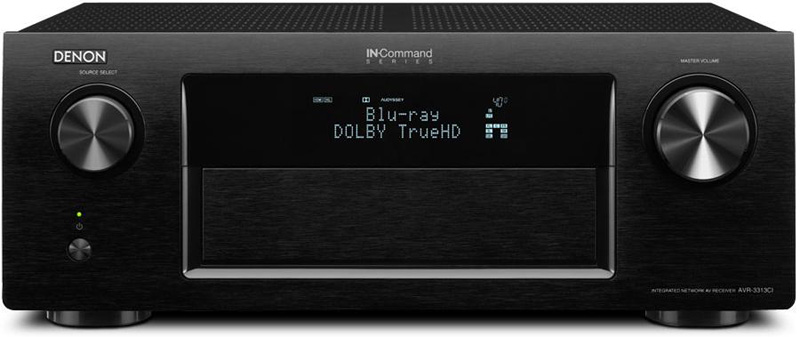

AVR3313 Premium Quality 7.2 Integrated Network AV Receiver with Zone 2 HDMI



Performance features
•Pure Audio Construction featuring;◦Fully discrete identical Single Push Pull power output transistors for each channel (not IC power packs)
◦Minimum Signal path for clearest, interference free audio and video signals
◦Direct Mechanical Ground construction for vibration free performance guaranteeing longer life
◦Custom made Block capacitors
◦Very stable power supply for the best possible sound and video reproduction

•DDSC-HD, Dynamic Discrete Surround Circuit – High definition
•AL24 Plus Processing for superior PCM audio performance
•Digital Clock Jitter reducer
•Denon Link HD
•Full High Definition audio decoding◦Dolby TrueHD
◦dts HD Master audio

•Dolby Pro Logic IIz
•Audyssey DSX processing
•Audyssey MultEQ XT Room & Speaker calibration
•7 x HDMI V1.4a inputs
•One cable HD Solution - Analogue video to HDMI conversion
•4K video pass through
•4K video scalar
•3D video pass through
•Deep Colour
•“x.v. Colour”
•HDMI control feature
•ARC, audio return channel
•Auto Lip sync
•HDMI Pass through in standby mode
•Compressed Audio Restorer
•FM radio tuner

Network and Digital Media features
•AirPlay audio support
•Direct Digital iPhone compatible USB
•USB charges iPod/iTouch/iPhone/iPad
•Denon Remote iOS App available free of charge from iTunes store
•Denon Remote Android APP available free of charge from Google Play
•Ethernet connection
•Spotify (firmware update due Spring 2012)
•DLNA certified for audio & photo streaming
•IP control via network
•Compatible with Windows 7
•FLAC & WAV 192kHz / 24 HD compatible
•Internet Radio
•Free access to vTuner website via www.radiodenon.com for easy setup of Internet Radio favourites and podcasts.
•Internet radio stations can be saved as a pre-set on remote control
•Firmware updates & upgrades via the Internet or USB

Assignable Surround back amplifiers
•Surround Back
•Zone 2 Stereo
•Zone 3 Stereo
•Zone 2 & 3 Mono
•Bi-amp
•2 Channel
•Front speaker B

Custom Install features
•3 Zone / 3 Source Multi Room
•Zone 2 & 3 pre outs
•PCM digital to analogue conversion for Optical & Coaxial input for Zone 2 & 3 playback
•Independent HDMI video and Audio in Zone 2
•Component video in Zone 2
•RS232C
•Remote control in and output
•2 x 12 volt trigger output / max 150mA
•Assignable SB amps for zones
•Independent speaker terminals for Front Height & Front Width channels
•ELAN, RTI, Control 4 certified integration partners
•AMX Discovery partner
•Crestron integration partner
•Audyssey Installer program ready

Convenience features
•New Easy Set-up assistant
•GUI (Graphic User Interface) overlay on HDMI source
•Audyssey Dynamic Volume to level out TV volume levels
•Audyssey Dynamic EQ for great surround sound effects even at low volume levels
•4 Quick select buttons
•Phono input
•New simple to use remote control handset Sleep timer function
•Audio level memory of individual input adjustments
•Audio delay adjustments for each input (6 frames or 200ms)
•Adjustable muting levels
•Dual subwoofer outputs
•Variable subwoofer crossover frequencies
•Lower power consumption of 0.1w in standby mode

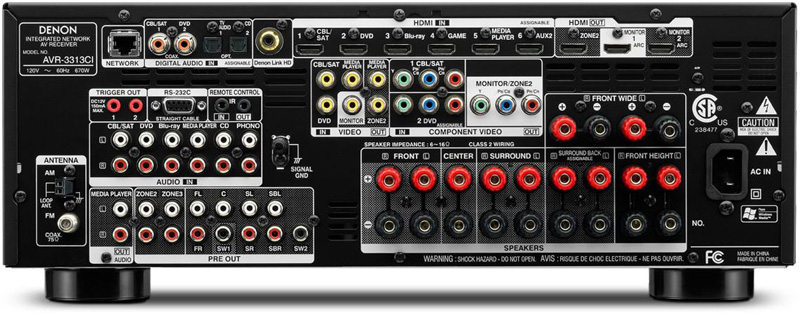

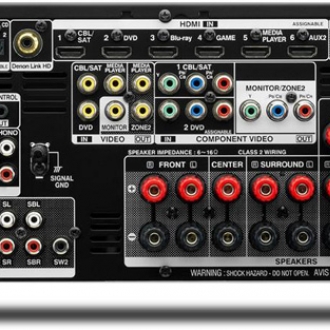

Connections

Inputs
•7 x HDMI (including front x 1)
•2 x Component video
•4 x Composite video (including front x 1)
•7 x Analogue audio (including front x 1)
•2 x Digital Coaxial
•2 x Digital Optical
•1 x Denon Link HD

Outputs
•2 x HDMI monitor with simultaneous signals
•HDMI for Zone 2
•1 x Component video for Main Zone or Zone 2
•3 x Composite video
•7.2 Audio pre-outs
•2 x Zone pre-outs
•1 x L&R Media player audio outs
•1 x headphone socket

Other
•1 x Ethernet
•1 x USB
•1 x Microphone port
•1 x FM antenna
•1 x Remote Control in & out
•1 x RS232C
•2 x 12 volt / 150mA trigger out

Main specifications
•All THD (total harmonic distortion) levels are measured at power amp section levels (not pre-amp)
•7 channels x 165 watts @ 6 ohms, 1kHz, 0.7%THD
•7 channels x 125 watts @ 8 ohms, 20Hz to 20kHz, 0.05% THD
•Dimensions (W x H x D) 434 x 167 x 379
•Weight 12.0kgs
